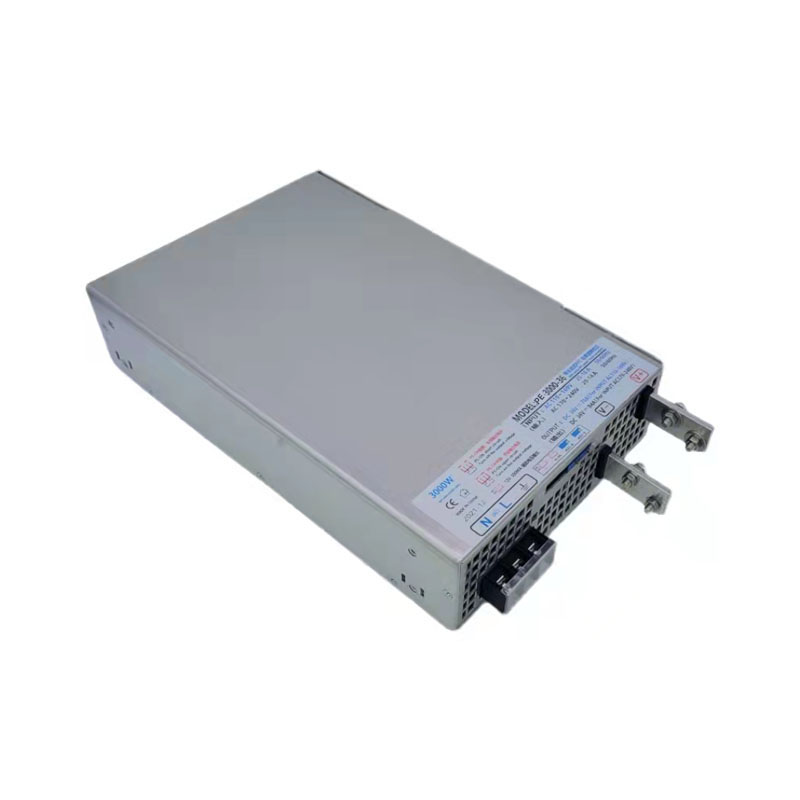

3000W High Power Supply
  • 3000W High Power Supply3000W High Power Supply

3000W High Power Supply

You can rest assured to buy 3000W High Power Supply from Powereagle factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

Powereagle is 3000W High Power Supply manufacturer and supplier in China.

3000W (with active PFC) single output

PE-3000 series

● Active PFC power factor correction function

● High PF value, low harmonics, high efficiency

● AC110-240V wide voltage input

● Multi-layer circuit board (4-layer line PCB board)

● Constant voltage constant current

● multiple voltage specifications optional

model PE-3000-24 PE-3000-36 PE-3000-48 PE-3000-60 PE-3000-72 PE-3000-110 PE-3000-150 PE-3000-250 PE-3000-300
Output parameter DC output voltage 24V 36V  48V 60V 72V 110V 150V 250V 300V
AC 220V input Output current 125A  83.3A 62.5A 50A 41.6A 27.2A 20A 12A 10A
Output Power 3000W 3000W 3000W 3000W 3000W 3000W 3000W 3000W 3000W
efficiency 89% 91.2% 91.8% 92% 92.3% 93.4% 94.3% 95% 95%
AC 110V input Output current 104A  69.4A  52A 41.6A 34.7A 22.7A 16.6A 10A 8.3A
Output Power 2500W 2500W 2500W 2500W 2500W 2500W 2500W 2500W 2500W
efficiency 87.2% 89.3% 89.6% 90.3% 91.4% 91.7% 92% 93% 93%
Tip: When using the AC110V input, Need to reduce the output power to 2500W
Ripple(max) 160mv  200mv 220mv 260mv 280mv 330mv 400mv 450mv 620mv
Voltage regulation range 12-24V 18-36V 24-48V 30-60V 35-72V 60-110V 75-150V 110-220V 150-300V
Linear adjustment rate ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Voltage accuracy ±2%  ±2% ±2% ±2% ±2% ±2% ±2% ±2% ±2%
Start / rise time Power-on post-delay 4-5 second start/ 500MS voltage complete
Power-off keeping time 16ms(220VAC  80%  load)      8ms(220VAC  100%  load)
Output wiring method Copper strip terminal, M5 nut seat, Need to use a power supporting copper terminal wiring
1.1. Efficiency This parameter is measured under 100% full load conditions, the efficiency is not a constant value (refer to    the following efficiency VS load graph)
2. Wave and noise measurement Method: Use 12 "twisted pair, output terminal parallel 0.1uf and 47uf capacitors    the oscilloscope bandwidth is limited to 20 MHz.


PFC Interlaced Boost
PWM Staggered parallel Two-transistor forword
Output parameter  input voltage AC 110v-240v (wide voltage adaptive)
Frequency Range 47-63Hz
Input Current (Maximum value) Full load 3000W output, use 220VAC input 16A Full of 2500W output, use 110VAC input 26A (When using 110V input, the maximum power is limited to 2500W)
Power during standby 10W
 Power factor (PFvalue) Use the AC220V input and power 100% full load,Power factor ≥ 0.96 (refer to PF value in the figure below) Use the AC110V input and power 100% full load,Power factor ≥ 0.97 (refer to PF value in the figure below)
Input Wiring method 3PIN KF78 spacing 14mm PCB fence type wiring terminal with protective cover
Enter a surge current Cold start 220VAC/53A  110VAC/28A
function PS-ON PS-ONTerminal short circuit: power off output voltage PS-ONTerminal open: turn on the output voltage ( Default is open) Note: The PS-ON function controls the output voltage on the power supply to turn off. When the output voltage is turned off, the power is in low power standby state (standby power 10 watts), only only the auxiliary power supply circuit is working, the heat dissipation fan is working properly. It is not disconnected from the 220V input.
Output voltage regulation Output voltage adjustable, Adj-V potentiometer manually adjustment)
Output current adjustment The output current can be adjusted, the ADJ-A potentiometer manually adjusts, when the load reaches the current setting value, the constant current output (output current remains unchanged, the output voltage is reduced with the load)
Auxiliary voltage output This machine provides a 12V-300mA auxiliary voltage output
Protective function Output overvoltage protection 120% of the maximum output voltage cut off, does not automatically recover, to re-power it will recover
Output short circuit protection There is no output after the output is shorted, and the output voltage is automatically restored after short circuit release.
Output overload protection The overload protection mode is constant current limit mode, the lock output current value is unchanged, and the output voltage is increased and decreases with the load.
Overheating  protection When the heat sink temperature of the PWM transistor reaches 85°C± 5%, the output voltage is turned off. Automatic recovery when the temperature drops to 75°C± 5%
Safety and EMC standard EMC    standard EN55032  (CISPR32)     Class A
Insulation resistance I/P-O/PI/P-FG,O/P-FG:100M      Ohms      /500VDC/25℃/70%RH
Leakage  current ≤3.5MA/AC220V
Withstand  voltage Input  and  output  :3000VAC      Input  and  ground:1500VAC      Output  end  and  housing:500VAC
environment Operating    temperature -30-35°C can be used in 100% full power, more than this temperature range to reduce the output power ( refer to the tempe ratu re drop curve below)
Storage temperature, humidity -40~+55℃,20-90%RH
Altitude Only used in 2000m altitude
other Cooling    method Built in cooling fan (temperature control speed, 2 fans) to blow air internally
Fan noise value In the indoor environment of 20-25 decibels, when the 2 fan is rotated, the power supply 50 cm is measured from 55 decibels.
Shell size 294mm  long  (45mm  extension  outside  the  terminal)* Width  185mm * height  65mm
Install fixing hole (Horizontal installation) length spacing: 236mm width spacing: 205mm  (reference dimension)
weight Weight  3.3kg

1.Pay attent ion to venti la tion and heat, can not be instal led ins ide the full sea led box

2. This power supply is limi ted to indoo r use, no rain, no waterproof, no dust, not suitable for outdoor environmen t and harsh envi ronments
