Product Description

Buy Hot 2000W with Active PFC Single Output made in China. Powereagle is 2000W with Active PFC Single Output manufacturer and supplier in China.

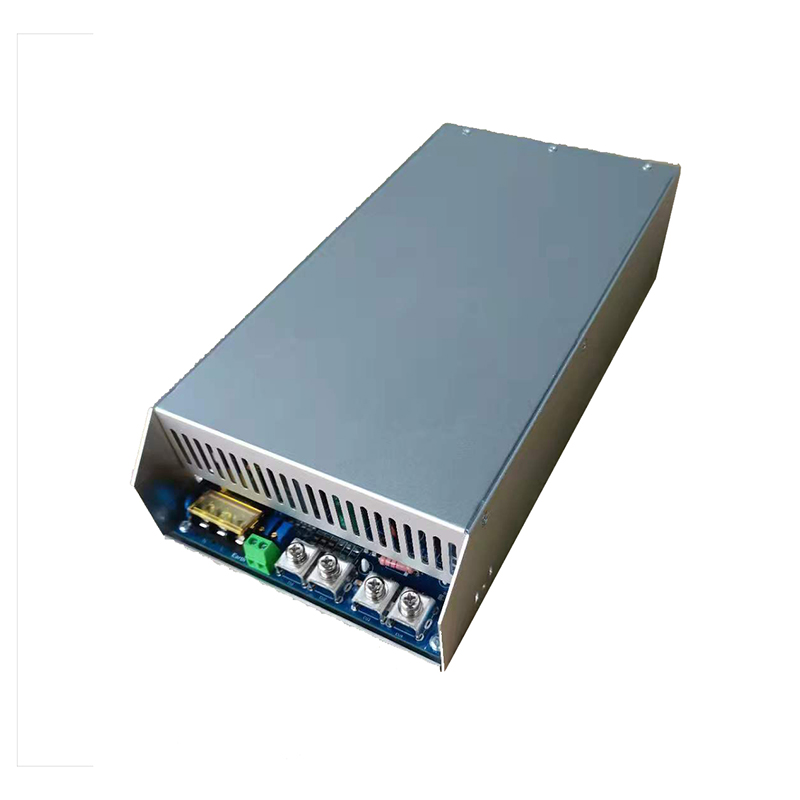

2000W (with active PFC) single output

● With active PFC power factor correction function

● AC110-240V wide voltage input

● Constant pressure and current function

● Control function of ps-On output voltage switch

● Multi layer board process (4-layer PCB)

MODEL PE-2000-24 PE-2000-36 PE-2000-48 PE-2000-60 PE-2000-72 PE-2000-110 PE-2000-150
Output parameters DC output voltage 24V 36V 48V 60V 72V 110V 150V
AC 220V input Rated output current 83A 55.5A 41.6A 33A 27.7A 18A 13.3A
Rated output power 2000W 2000W 2000W 2000W 2000W 2000W 2000W
AC 110V input Rated output current 62.5A 41.6A 31A 25A 20.8A 13.6A 10A
Rated output power 1500W 1500W 1500W 1500W 1500W 1500W 1500W
conversion efficiency 88.5% 90.5% 91% 91% 91.5% 93% 93.5%
Ripple (full load) 200mv 230mv 250mv 250mv 280mv 300mv 350mv
Linear adjustment rate ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load adjustment rate ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Voltage stabilization accuracy ±3% ±3% ±3% ±3% ±3% ±3% ±3%
Start up, rise time  2S/300ms hold up time:15ms
input parameter input voltage AC 110v-240v (wide voltage adaptive, no conversion required)
AC input frequency 47-63Hz
Input current (maximum) Full load 2000W output, using 220VAC input, input current 10A Full load 1500W output, 15A when using 110VAC input (when using 110V input, the maximum power is limited to 1500W)
power factor Using AC220V input, when the power supply is 100% full load, the power factor PF value is ≥0.97(refer to the PF curve diagram below) Using AC1100V input, when the power supply is 100% full load, the power factor PF value is ≥0.98(refer to the PF curve diagram below)
Surge current

220VAC/45A      110VAC/22A

function PS-ON PS-on terminal short circuit: no output voltage of power supply PS-on terminal open circuit:The power supply has an output voltage Note: PS-on can control the power output voltage on and off. When the output voltage is turned off, the power supply is in the low power standby state (less than 10 watts), and only the auxiliary power supply circuit is working inside. The cooling fan will operate normally not the power supply of 220 V input end will be disconnected.
Output voltage regulation The output voltage can be adjusted (only the voltage can be adjusted lower, not higher) Potentiometer V is used to adjust the voltage
Output current regulation The output current is adjustable. Potentiometer a can be adjusted manually. When the load reaches the current setting value, the power supply will output in constant current mode
Protection function over load protection The overload protection mode is constant current limiting mode, the lock output current value remains unchanged, and the output voltage decreases with the increase of load
Output short circuit protection After the output short circuit, there is no voltage output, and the output voltage will be automatically restored after the short circuit is removed
Output overvoltage protection When the output voltage increases to 125% of the rated voltage, the power will be turned off Output, not automatically restored. To turn off the input voltage, wait for 10 seconds and then turn it on again
Overheating protection When the temperature of the heat sink of the PWM transistor reaches 85℃±5%, the output voltage is turned off, and the temperature drops to 75°C±5%, and it will automatically recover
 Security and EMC standard EMC standard Can't reach EMC standard
Insulation impedance I/P-O/PI/P-FG,O/P-FG:100M     Ohms     /500VDC/25℃/70%RH
Leakage current ≤2.5MA/AC220V
Withstand voltage Input and output: 3000VAC Input and ground: 1500vac Between output end and housing: 500VAC
 other Heat dissipation mode Fan heat dissipation (temperature control automatic speed regulating fan, double fan, internal air blowing mode)
Cooling fan Noise value In the indoor environment of about 25 dB, when two fans rotate at full speed, about 42 dB is measured at 50cm away from the power supply
working temperature -30℃- 40℃. To reduce power under high temperature environment, refer to the temperature load drop curve below
size Length  280mm * width  140mm * height 65mm
weight 2.3kg (excluding package and accessories)
Installation hole position The length spacing is 254MM and the width spacing is 122mm. Use external fittings bracket

1.Pay attention to venti lation and heat dissipation during use. Do not install the power supply in a fully sealed box.     The heat dissipation outlet of the power supply and the fan inlet cannot be blocked by objects.

2.This power supply is only for indoor use, not rainproof, not waterproof, not dustproof, not for outdoor use, not     suitable for high temperature environment above 50 ℃
