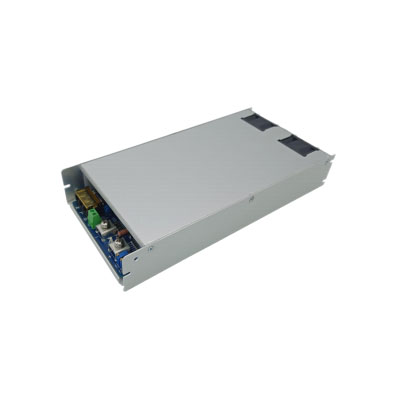

1000W (with active PFC) single group output

PE-1000 series

● With active PFC power factor correction function

● AC 115-230v wide voltage input

● 1U ultra thin (thickness 4cm)

● 1000W rated power, 1150W maximum power

● Constant pressure and current function

● Control function of ps-0n output voltage switch

● A variety of voltage specifications are available

Model PE-3000-12 PE-3000-24 PE-3000-36 PE-1000-48 PE-1000-54 PE-1000-60 PE-1000-72 PE-1000-110 PE-1000-150
Output parameter DC output voltage 12V 24V 36V 48V 54V 60V 72V 110V 150V
Rated output current 66A 42A 28A 21A 18.5A 17A 13.8A 9A 6.6A
Maximum output current 70A 46A 30A 23A 20A 18A 15A 10A 7A
Rated output power 800W 1000W 1000W 1000W 1000W 1000W 1000W 1000W 1000W
Maximum output power 840W 1100W 1100W 1100W 1080W 1100W 1100W 1100W 1100W
conversion efficiency 86% 89% 90.50% 92% 92% 92.50% 92.50% 93% 93%
Ripple (full load) 180mv 200mv 230mv 250mv 280mv 280mv 300mv 330mv 350mv
Linear adjustment rate ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Load adjustment rate ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5%
Voltage stabilization accuracy ±3%
Start up, rise time 2s 100ms
Holding time 15ms
Output wiring mode M5 riveting terminal
input parameter input voltage AC 110v-240v (wide voltage adaptive, no conversion required)
AC input frequency 47-63Hz
Input wiring mode 3pin hb-9500 terminal with protective cover Please connect the ground wire when using
Input current (maximum) Full load 1000W output, using 220VAC input, input current 5A Full load 1000W output, using 110VAC input, input current 10A
power factor (PF value) Ac110-240v input, when the power supply is 100% full load, the power factor pf value ≥0.98 (see the PF value curve in the figure below)
Surge current Cold start, 40A at 230V, 20A at 110V
function PS-ON PS-on terminal short circuit: no output voltage of power supply PS-on terminal open circuit: The power supply has an output voltage Refer to the picture below explain: ps-on can control the output voltage of the power supply on and off. When the output voltage is turned off the power supply is in a very low power (less than 10W) standly state. Only the auxiliary power supply is working inside, and the cooling fan will work normally. The power supply of ac1 10-240v input terminal is not disconnected.
Output voltage regulation Potentiometer V is used to adjust the voltage
Output current regulation The output current is adjustable in the whole process, and the ADJI potentiometer is adjusted manually. When the load reaches the current setting value, the power supply keeps constant current output
Protection function Output high voltage protection When the output voltage increases to 1 15% of the rated voltage, the power will turn off the output and will not recover automatically. It can only be restored by re energizing
Output short circuit protection When the output terminal is short circuited, the power supply has no voltage output, and the power supply recovers the output voltage after the short circuit is removed
over load protection The overload protection mode is constant current limiting mode, the locked output current value does not rise, and the output voltage decreases with the increase of load
Overheating protection When the temperature of the heat sink of PWM transistor reaches 85。C, the output voltage will be turned off, and when the temperature drops to 75。C, it will automatically recover
Security and EMC standard EMC standard Does not conform to EMC standards
Insulation impedance I/P-O/P,I/P-FG,0/P-FG:100M Ohms /500VDC /25°C/70%RH
Leakage current ≤1.5MA/AC220V
Withstand voltage Input and output: 3000VAC   Input and ground: 1500vac Between output end and housing: 500VAC
vibration behavior 10~ 500Hz, 2G 10 min 1/ cycle, 60 min for each axis of XYZ
other Heat dissipation mode Fan heat dissipation (temperature control automatic speed regulating fan, double fan,internal air blowing mode)
Noise value of cooling fan In the indoor environment of about 20-25 dB, when two fans rotate at full speed, about 37 DB is measured at 50cm away from the power supply
working temperature  -30-40°C, the power should be reduced when over temperature. Refer to the temperature load reduction curve below
weight Light and thin type 1.4kg (excluding package and accessories)
size Length 268mm * width 130mm * height 40mm
Installation hole position The long spacing is 260mm, and the width spacing is 120mm. The U-shaped groove and screw hole at the four corners of the shell are used to install and fix

1. Pay attention to ventilation and heat dissipation when using. Do not install the power supply in a fully sealed power supply

2.There is high-voltage electricity in the casing. Non professional personnel are not allowed to dismantle the machine at will and can not operate with electricity to prevent electric shock

block diagram
