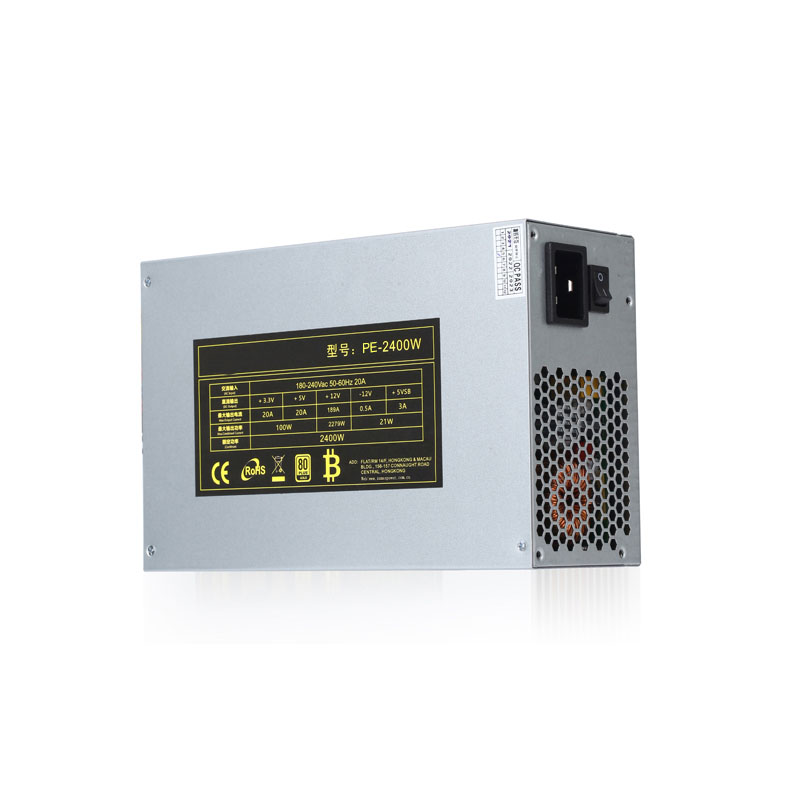

2400W High Power Supply
  • 2400W High Power Supply2400W High Power Supply

2400W High Power Supply

Powereagle is 2400W High Power Supply manufacturers and suppliers in China who can wholesale 2400W High Power Supply, we can provide professional service and better price for you.

Send Inquiry

Product Description

Powereagle is a professional 2400W High Power Supply manufacturers and suppliers in China. If you interested in 2400W High Power Supply products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Output Voltage

Table 1 below summarizes the minimum DC output voltages and associated power requirements for each output.

(2400 Watts Load Ratings-ATX  +12V Rails for processor Power)

Load Range

Model NO. Output Watts Parameter Min Nom. Max Peak Unit
PE2400 2400W +3.3V 0.0A 7.5A 15.0A Amps
+5V 0.0A 7.5A 15.0A Amps
+12V 0.0A 60A 130A 140A Amps
-12V 0.0A 0.25A 0.5A 1.0A Amps
+5VSB 0.0A 1.5A 3.0A 3.5A Amps


(1) The maximum continuous total DC outputs power shall not exceed 2400W for PE2400

(2) The maximum continuous load on +5V and +3.3V outputs shall not exceed 100W.

(3) The maximum combined current for the +12V outputs shall be 130A for PE2400

(4) The 5V standby output shall remain on while the AC input power connected,whether DC outputs are disabled (Off) or enabled (On) by the remote on control signal,  but when the 5V Standby output remained on with the AC input power turn off ,  the remote on control will be disabled.

(5) When the combined current for the +12V outputs is 130A the+5Vminimum load is1A.

(6) The peak load of PE2400  Mis 2500w for 1.0MIN


Input Voltage……90VAC~264VAC

Input Current……25A Max

Input Frequency……47Hz~63Hz

Line Regulation……1% Max

Load Regulation……±5%




Short Circuit Protection

Over Current Protection

Over Voltage Protection

Over Temperature Protection



Storage Temperature…-40℃~85℃

Operating humidity……20%~90%

Storage Humidity……10%~95%




CE EMC(EN55032+EN55035)
