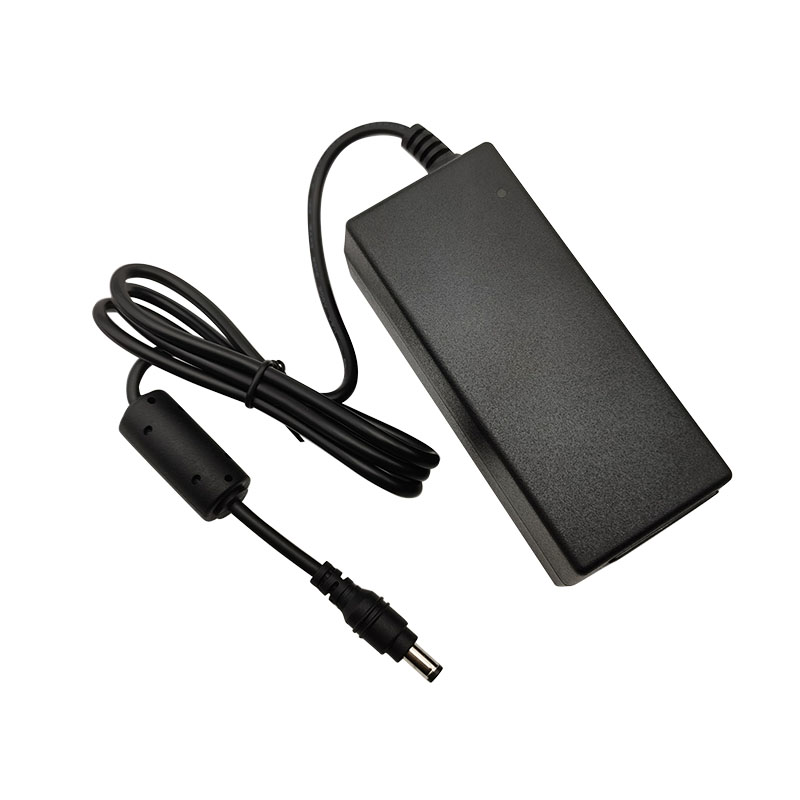

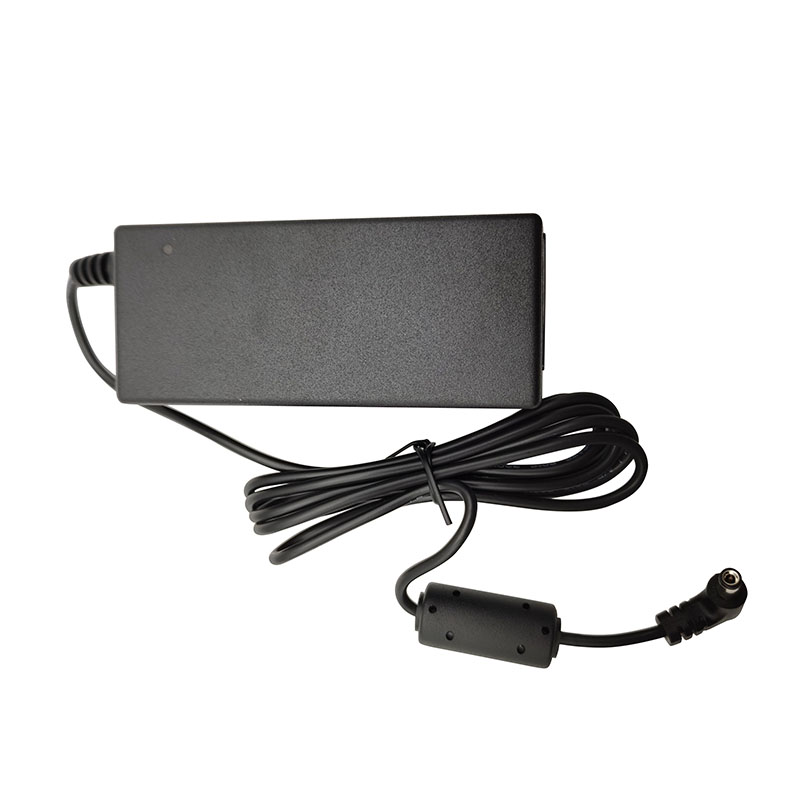

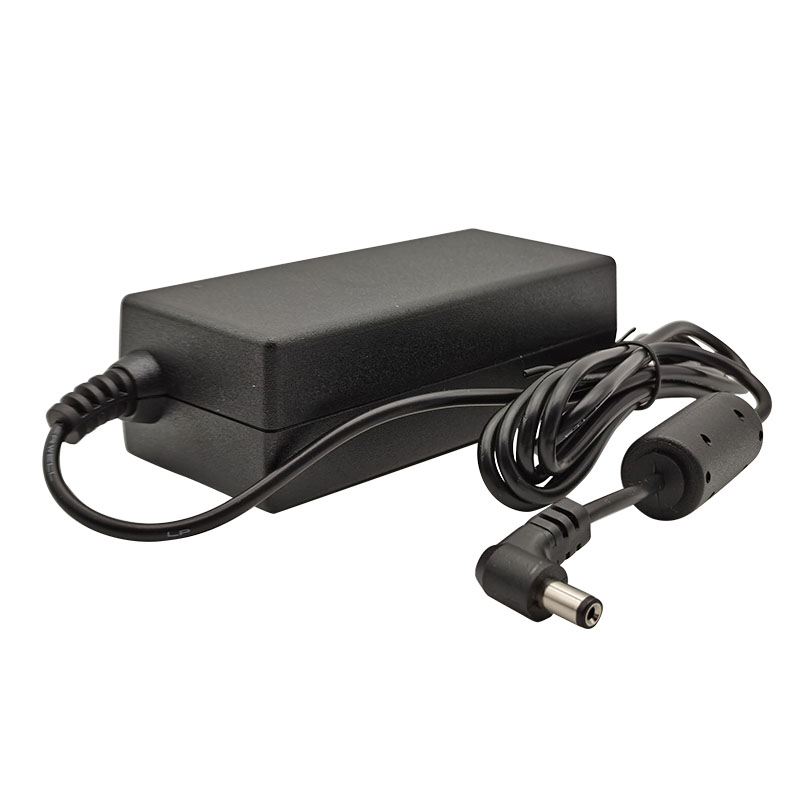

Powereagle is one of the famous China 25-72W Medical AC DC Desktop Adaptor manufacturers and suppliers. Our factory specializes in manufacturing of 25-72W Medical AC DC Desktop Adaptor. Welcome to buy 25-72W Medical AC DC Desktop Adaptor from us. Every request from customers is being replied within 24 hours.
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LED Indicator
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current / Over temperature (optional)
• Energy Efficiency Level VI
• No Load Power Consumption Less than 50W: ≤ 0.1W，More than (includes) 50W: ≤ 0.21W
• MTBF > 100,000 hours
X:AC inlet: 1. C14 2. C8 3. C6 6. C18
Y:Output range
vv:Specified output voltage, i.e. 12 is 12VDC
PP:DC plug type, i.e. Code 01 for 5.5x2.1mm or other options (refer to the appendix page)
OUTPUT
| Wattage | Output | Universal Input | Frequency | AC Inlet | Case Size | / |
|---|---|---|---|---|---|---|
| 25W | 5~9VDC | 100~240VAC | 50~60Hz | C14, C8, C6, C18 | 113L x 49W x 35H (mm) | IEC 60601-1 (ed.3.2) & IEC/EN 60601-1-2 (ed.4.1) certified |
| 40W | 12~16VDC | |||||
| 40W | 18~24VDC | |||||
| 40W | 32~42VDC | |||||
| 40W | 44~56VDC | |||||
| 30W | 5~9VDC | |||||
| 50W | 12~16VDC | |||||
| 50W | 18~24VDC | |||||
| 50W | 32~42VDC | |||||
| 50W | 44~56VDC | |||||
| 72W | 32~42VDC | |||||
| 35W | 5~9VDC | |||||
| 60W | 12~16VDC | |||||
| 60W | 18~24VDC | |||||
| 60W | 32~42VDC | |||||
| 60W | 44~56VDC | |||||
| 45W | 5~9VDC | |||||
| 72W | 44~56VDC | |||||
| 72W | 12~16VDC | |||||
| 72W | 18~24VDC | |||||
| 40W | 5~9VDC | |||||
| 65W | 12~16VDC |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
• Input Range 100 to 240 VAC
• Frequency 50 to 60Hz
• Input Current ≤ 2A
• Inrush Current ≤ 120A/230VAC
• Hold Up Time ≥ 8.3ms
• Turn On Time ≤ 3s
• Short Circuit Protection Auto Recovery
• Over Voltage Protection Latch-off / Auto Recovery
• Over Current Protection Auto Recovery
• Over Temperature Protection Optional
• Operating Temperature -20 to 40°C
• Storage Temperature -20 to 85°C
• Operating Humidity 10% to 90%
• Storage Humidity 5% to 95%
• Case Size: 113L x 49W x 35H (mm)

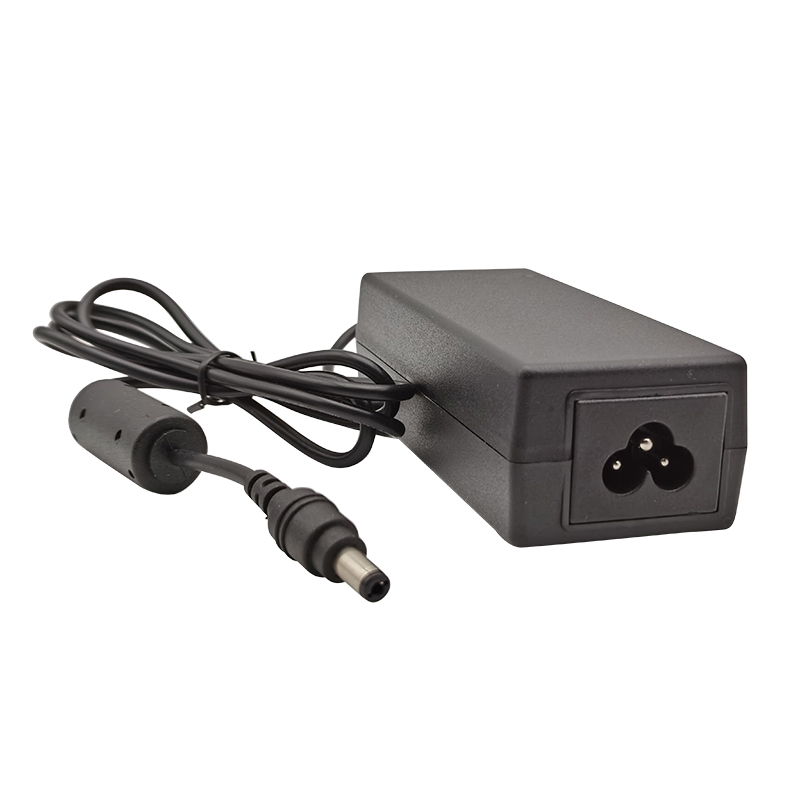

• AC Inlet: C14, C8, C6, C18
• Weight: 300g
• Certified for whole series: ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2)UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), UKCA
• Certified for assigned models: NRCAN
