Welcome to wholesale 15-24W Medical AC DC Interchangeable Adaptor from us, every request from customers is being replied within 24 hours. Powereagle is the professional manufacturer, we would like to provide you 15-24W Medical AC DC Interchangeable Adaptor and we will offer you the best after-sale service and timely delivery.
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
X: Output range
Y: Case type: (V)Vertical

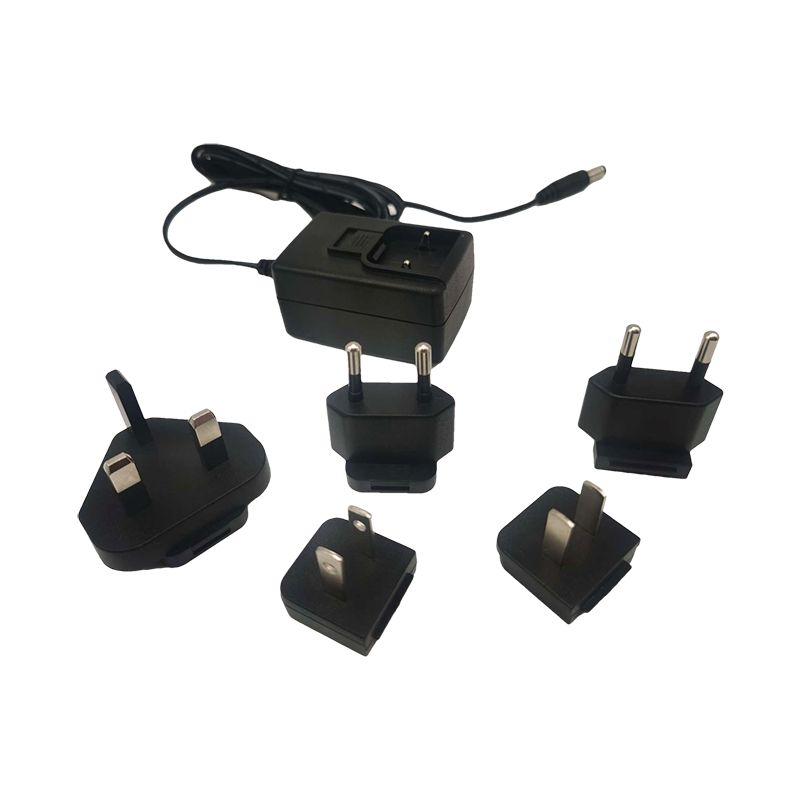

R: Interchangeable AC plug:
• U: USA • E: EU • K: UK • A: SAA • C: China
• S: South Africa • B: Korea • I: India
T: Output type: S (SR)
vv: Specified output voltage, i.e. 12 is 12VDC
PP: DC plug type, i.e. Code 01 for 5.5x2.1mm or other options (refer to the appendix page)
OUTPUT
| Wattage | Output | Universal Input | Frequency | AC Plug type | Case Size |
|---|---|---|---|---|---|
| 15W | 5~8VDC | 100~240VAC | 50~60Hz | U: USA, E: EU, K: UK, A: SAA, C: China,S: South Africa, B: Korea, I: India | 62.5L x 41W x 34H (mm) |
| 20W | 9~13VDC | ||||
| 20W | 14~19VDC | ||||
| 20W | 20~27VDC | ||||
| 20W | 28~35VDC | ||||
| 20W | 36~48VDC | ||||
| 18W | 5~8VDC | ||||
| 24W | 9~13VDC | ||||
| 24W | 14~19VDC | ||||
| 24W | 20~27VDC | ||||
| 24W | 28~35VDC | ||||
| 24W | 36~48VDC |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
• Input Range 100 to 240 VAC
• Frequency 50 to 60Hz
• Input Current ≤ 0.8A
• Inrush Current ≤ 80A/230VAC
• Hold Up Time ≥ 8.3ms
• Turn On Time ≤ 3s
• Short Circuit Protection Auto Recovery
• Over Voltage Protection Auto Recovery
• Over Current Protection Auto Recovery
• Operating Temperature -20 to 40°C
• Storage Temperature -20 to 85°C
• Operating Humidity 10% to 90%
• Storage Humidity 5% to 95%
• Case Size: 62.5L x 41W x 34H (mm)
• AC Plug: U: USA, E: EU, K: UK, A: SAA, C: China， S: South Africa, B: Korea, I: India
• Weight: 150g
• Certified for whole series: ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2)UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), CCC, UKCA
• Certified for assigned models: RCM, Argentina
