Product Description

Powereagle as a professional high quality 12W Medical AC DC Interchangeable Adaptor manufacturer, you can rest assured to buy 12W Medical AC DC Interchangeable Adaptor from our factory and we will offer you the best after-sale service and timely delivery.

Features

• 2 x MOPP Compliance, IEC/EN60601-1 Approval

• Protections: Short circuit / Over voltage / Over current

• Energy Efficiency Level VI

• No Load Power Consumption ≤ 0.1W

• MTBF > 100,000 hours

EM1012 X Y R T - vv PP

X: Output range

Y: Case type: (V)Vertical

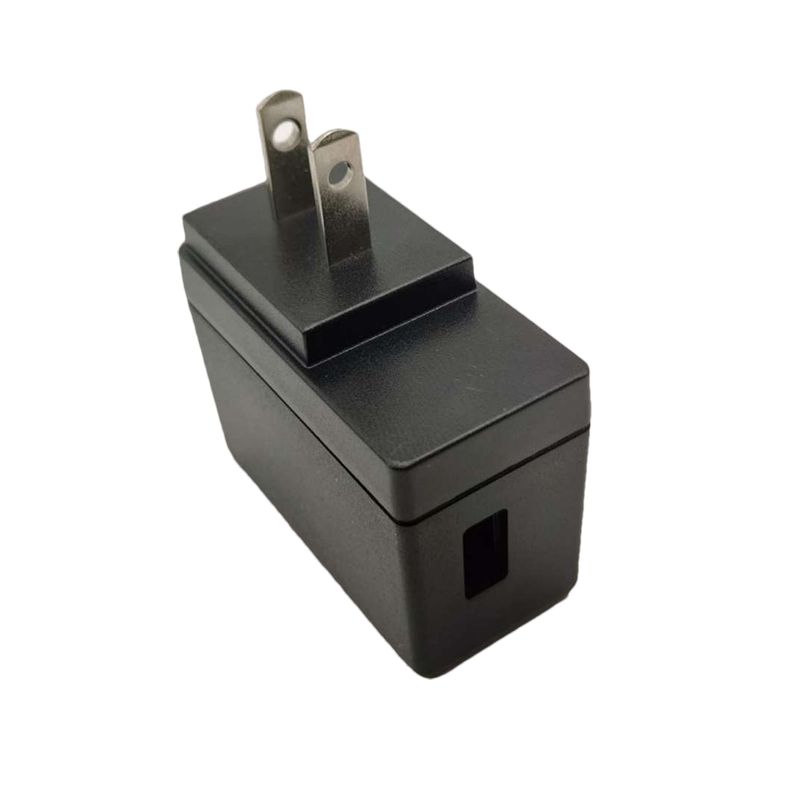

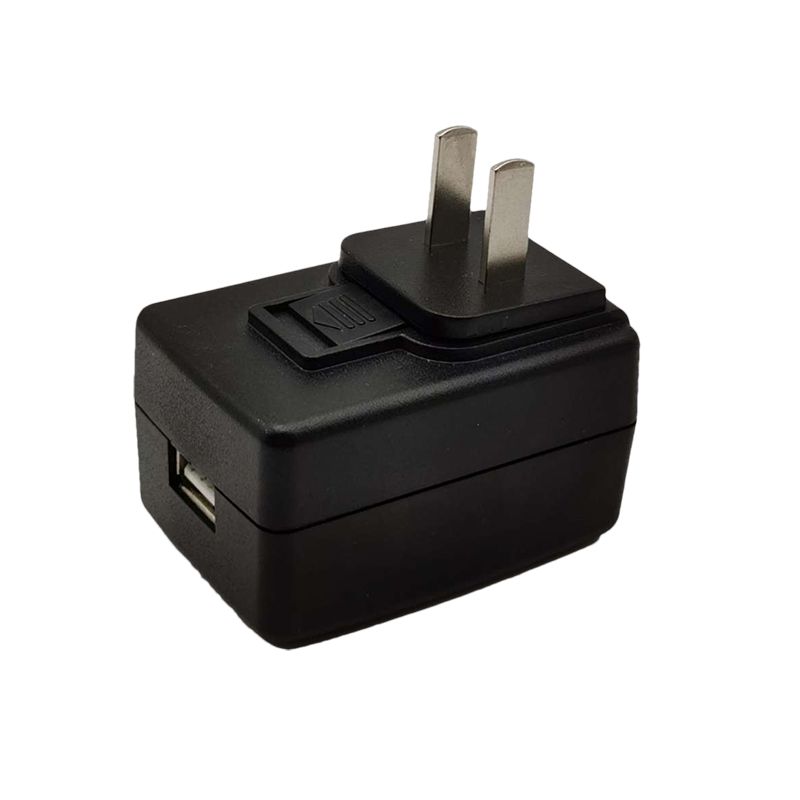

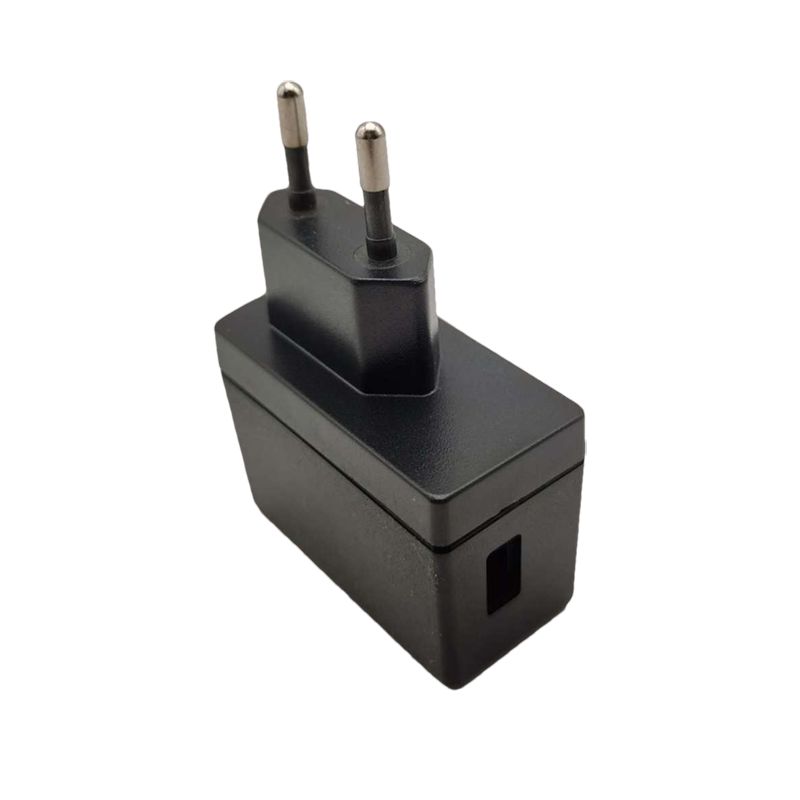

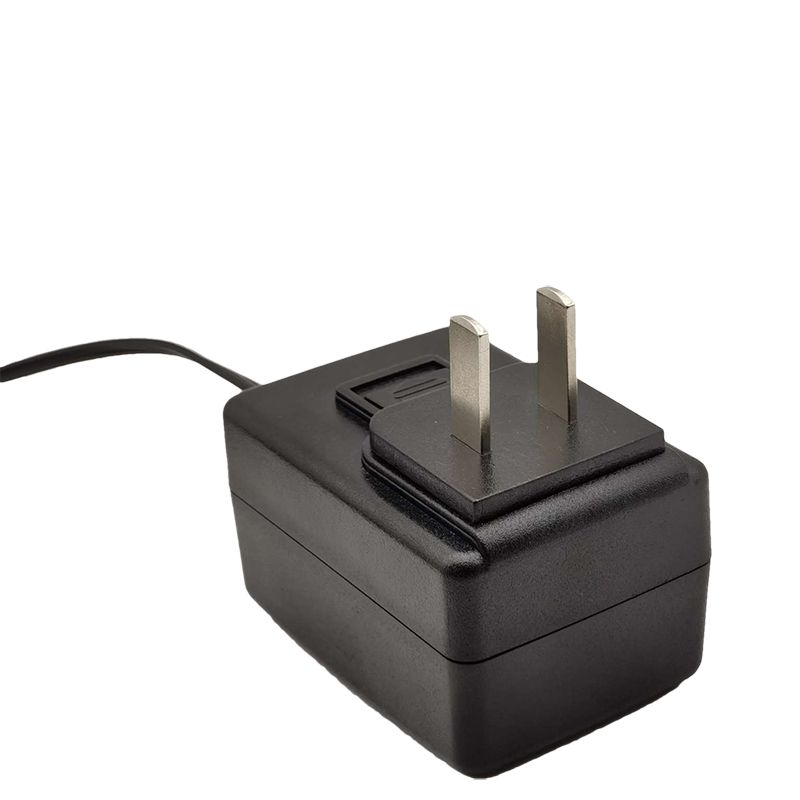

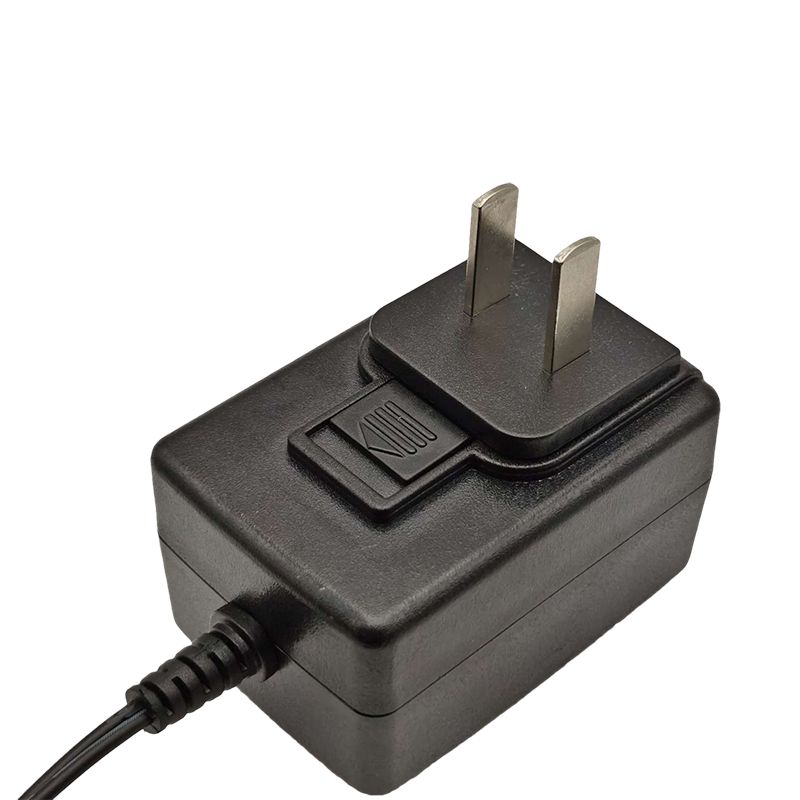

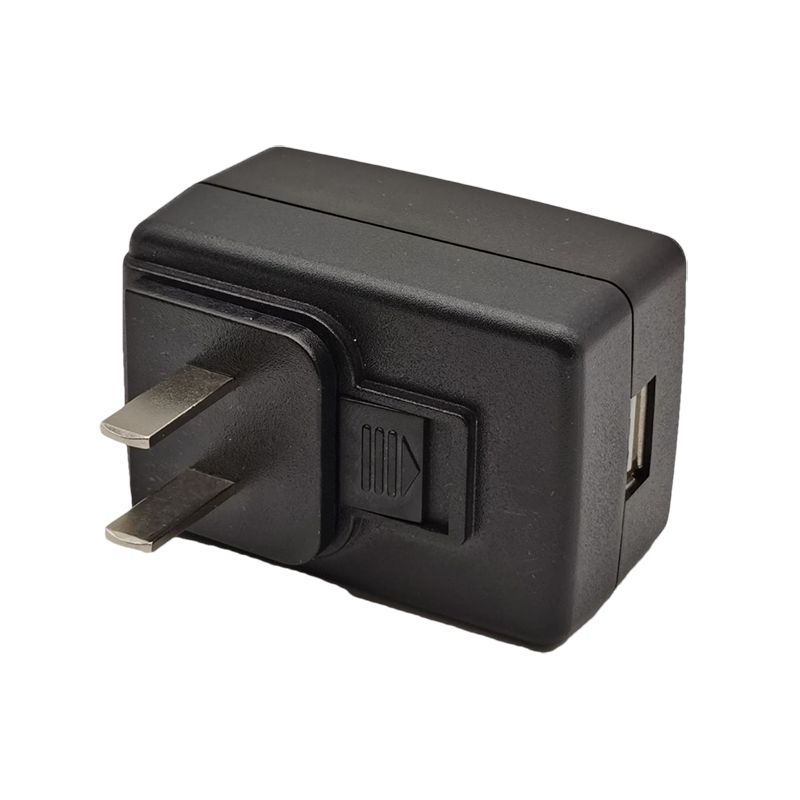

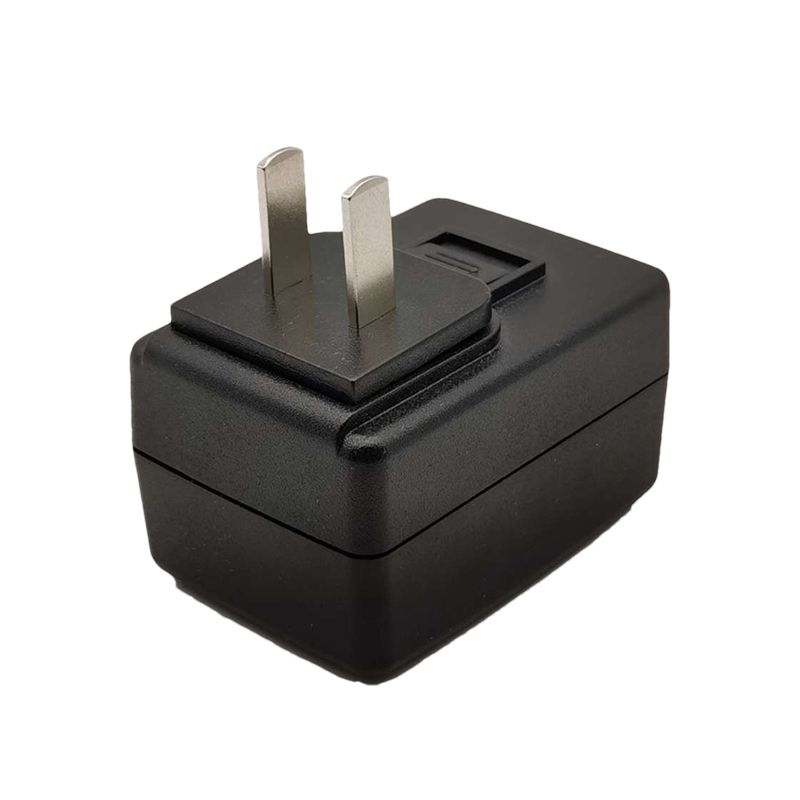

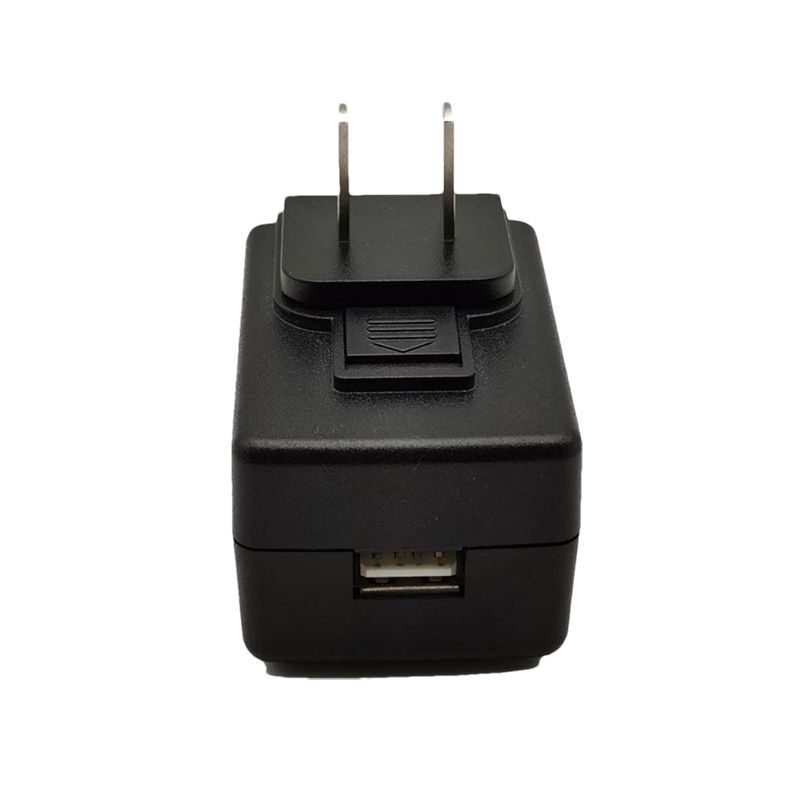

R: Interchangeable AC plug:

• U: USA • E: EU • K: UK • A: SAA • C: China

• S: South Africa • B: Korea • I: India

T: Output type: U (USB) or S (SR)

vv: Specified output voltage, i.e. 12 is 12VDC

PP: DC plug type, i.e. Code 01 for 5.5x2.1mm or other options (refer to the appendix page)

General Specification

OUTPUT

Wattage	Output	Universal Input	Frequency	AC Plug type	Case Size
12W	5~8VDC	100~240VAC	50~60Hz	U: USA, E: EU, K: UK, A: SAA, C: China,S: South Africa, B: Korea, I: India	57L x 39W x 34H (mm)
	9~11VDC
	12~17VDC
	18~24VDC

NOTE:

1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.

2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.

3 : Max. Power (W) ≥ Vo x Io

INPUT

• Input Range 100 to 240 VAC

• Frequency 50 to 60Hz

• Input Current ≤ 1A

• Inrush Current ≤ 60A/230VAC

• Hold Up Time ≥ 8.3ms

• Turn On Time ≤ 5s

PROTECTION

• Short Circuit Protection Auto Recovery

• Over Voltage Protection Auto Recovery

• Over Current Protection Auto Recovery

ENVIRONMENT

• Operating Temperature -20 to 40°C

• Storage Temperature -20 to 85°C

• Operating Humidity 10% to 90%

• Storage Humidity 5% to 95%

MECHANICAL

• Case Size: 57L x 39W x 34H (mm)

• AC Plug: U: USA, E: EU, K: UK, A: SAA, C: China ,S: South Africa, B: Korea, I: India

• Weight: 70g

SAFETY

• Certified for whole series: ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2)UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), UKCA

• Certified for assigned models: PSE, NRCAN
