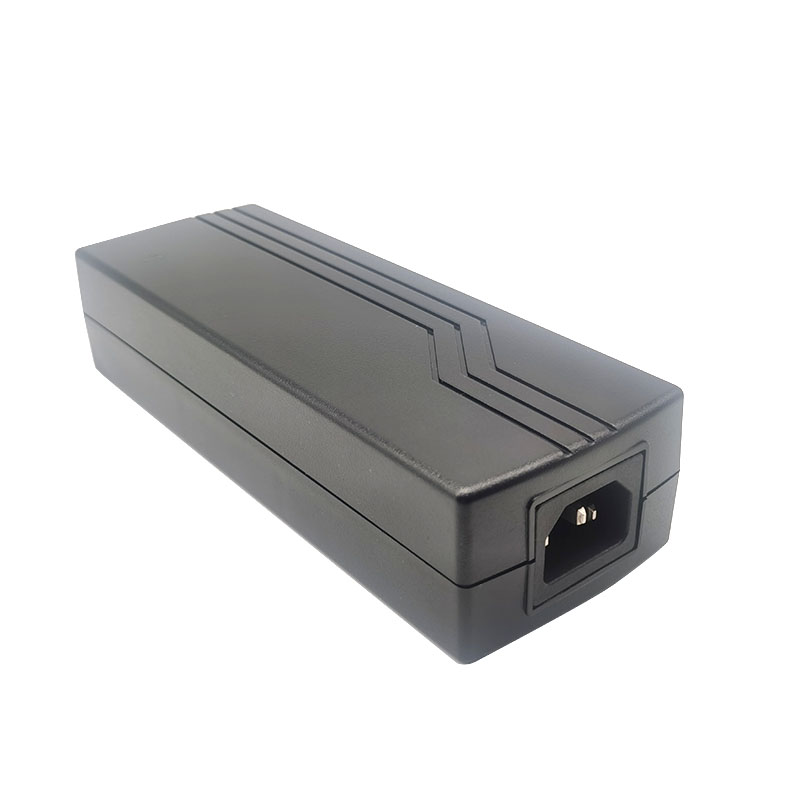

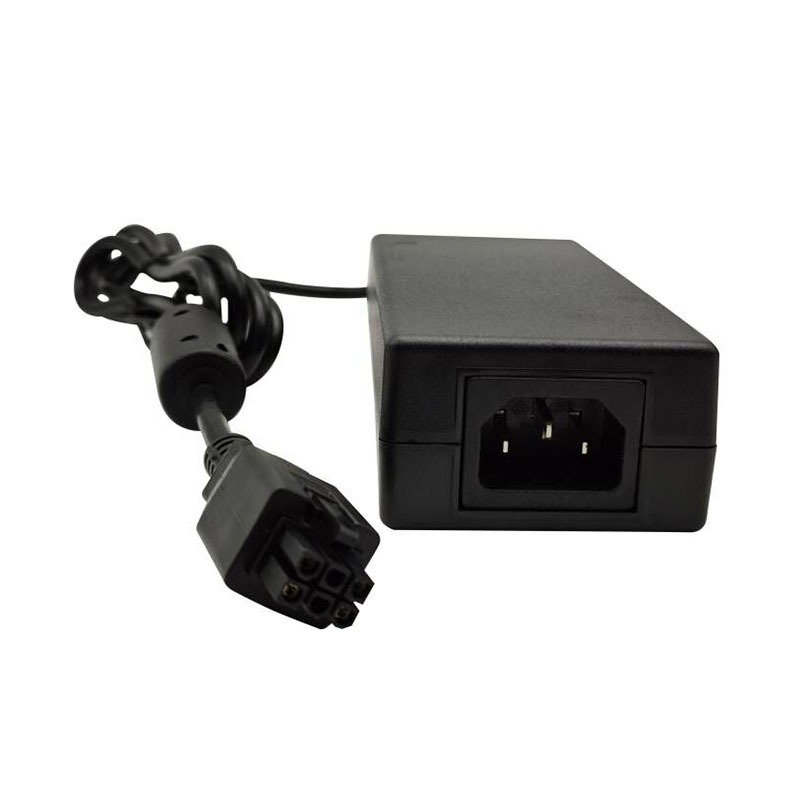

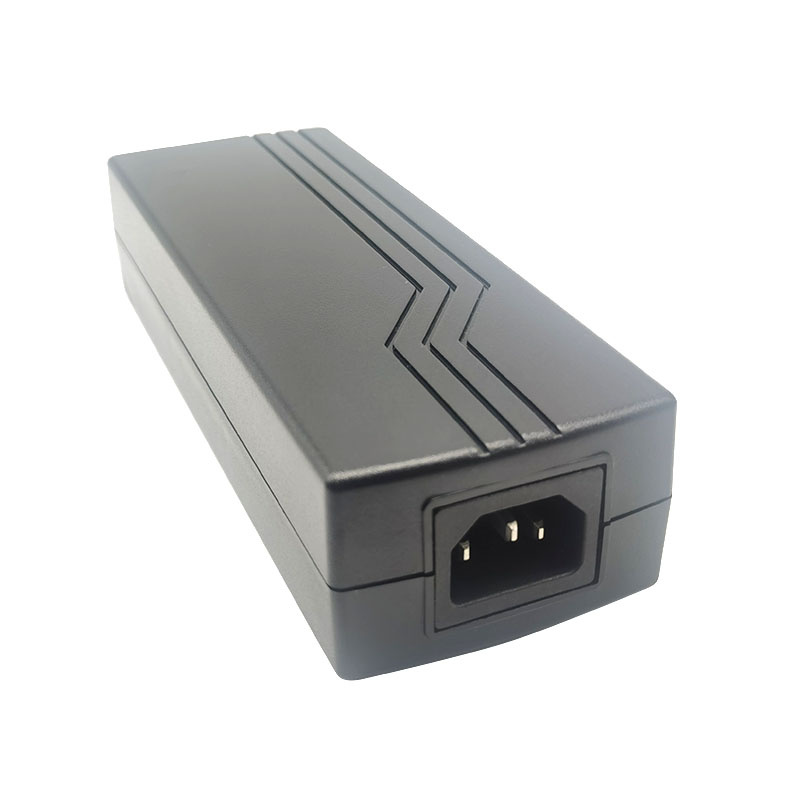

130-180W Medical AC DC Desktop Adaptor
  • 130-180W Medical AC DC Desktop Adaptor130-180W Medical AC DC Desktop Adaptor
  • 130-180W Medical AC DC Desktop Adaptor130-180W Medical AC DC Desktop Adaptor
  • 130-180W Medical AC DC Desktop Adaptor130-180W Medical AC DC Desktop Adaptor

130-180W Medical AC DC Desktop Adaptor

High quality 130-180W Medical AC DC Desktop Adaptor made in China. Powereagle is 130-180W Medical AC DC Desktop Adaptor manufacturer and supplier in China.

Send Inquiry

Product Description

Hot sale quality 130-180W Medical AC DC Desktop Adaptor with Low Price made in China. Powereagle is 130-180W Medical AC DC Desktop Adaptor manufacturer and supplier in China.

Features


• 2 x MOPP Compliance, IEC/EN60601-1 Approval

• LED Indicator

• Active PFC Function

• Protections: Short circuit / Over voltage / Over current / Over temperature

• Energy Efficiency Level VI

• No Load Power Consumption ≤ 0.21W

• MTBF > 50,000 hours


EM1170 X Y - vv PP

X: AC inlet: 1. C14 2. C8 3. C6 6. C18

Y: Output range

vv: Specified output voltage, i.e. 12 is 12VDC

PP: DC plug type, i.e. Code 01 for 5.5x2.1mm or other options (refer to the appendix page)

General Specification

OUTPUT


Wattage Output VAC Universal Input Frequency AC Inlet Case Size
130W 12~16VDC 100~240 50~60Hz C14, C8, C6, C18 179L x 64.2W x 40H (mm)
130W 19~24VDC
140W 12~16VDC
140W 19~24VDC
150W 12~16VDC
150W 19~24VDC
150W 32~42VDC
150W 44~56VDC
130W 32~42VDC
130W 44~56VDC
130W 44~56VDC
160W 19~24VDC
170W 19~24VDC
180W 19~24VDC
180W 32~42VDC
180W 44~56VDC

NOTE:

1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.

2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.

3 : Max. Power (W) ≥ Vo x Io

INPUT

• Input Range 100 to 240 VAC

• Frequency 50 to 60Hz

• Input Current ≤ 2.5A

• Inrush Current ≤ 120A/230VAC

• Hold Up Time ≥ 8.3ms

• Turn On Time ≤ 3s

PROTECTION

• Short Circuit Protection Auto Recovery

• Over Voltage Protection Latch-off

• Over Current Protection Auto Recovery

• Over Temperature Protection Latch-off

ENVIRONMENT

• Operating Temperature -20 to 40°C

• Storage Temperature -20 to 85°C

• Operating Humidity 10% to 90%

• Storage Humidity 5% to 95%

MECHANICAL

• Case Size: 179L x 64.2W x 40H (mm)

• AC Inlet: C14, C8, C6, C18

• Weight: 705g

SAFETY

Certified for whole series: ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2) UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), UKCA

Certified for assigned models: RCM, CU, NRCAN
