• 5" x 3" Compact Size
• 2 x MOPP Compliance
• Protections : Short circuit / Over voltage / Over current / Over temperature
• Energy Efficiency ≥ 89%~92% depends on models
• No Load Power Consumption ≤ 0.5 W
• MTBF > 100,000 hours
• Low Leakage Current

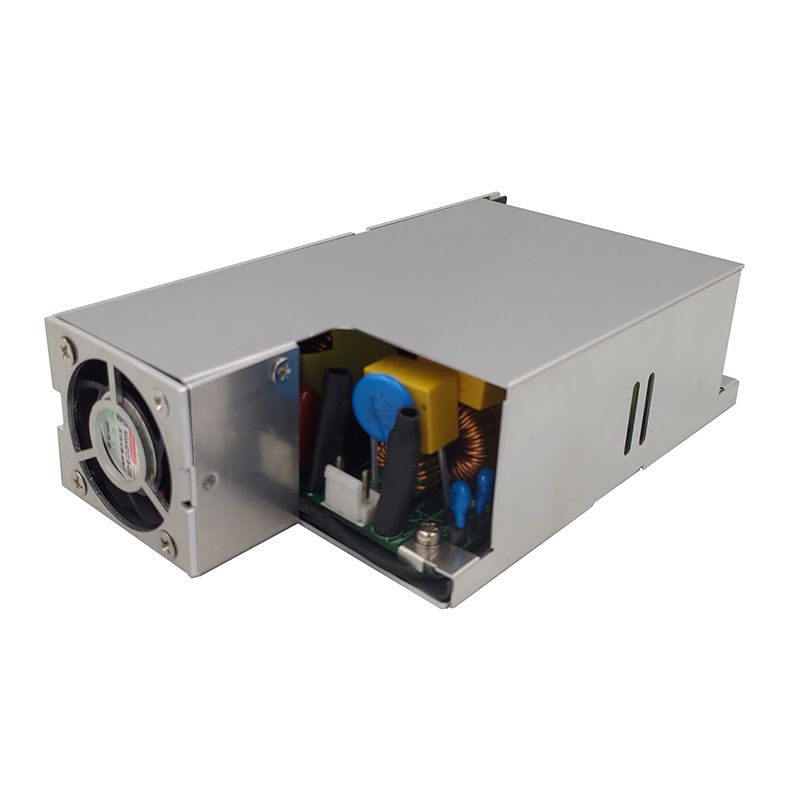

• 350W Convection / 500W Forced Air
• 5V Stand by &12V Fan Supply (optional)
• Customized Solutions Available
V: Numbers of outputs
U: Output range
XX: Specified output voltage, i.e. 12 is 12VDC
YY: Differential segmentation
OUTPUT
| Wattage | Output | VAC Universal Input | Frequency | Mechanical Size |
|---|---|---|---|---|
| 300W Convection / 400W Forced Air | 12VDC | 100~240 | 50~60Hz | 130L x 86.5W x 42.8H (mm) |
| 12VDC | ||||
| 18VDC | ||||
| 24VDC | ||||
| 27VDC | ||||
| 36VDC | ||||
| 48VDC | ||||
| 330W Convection / 450W Forced Air | 12VDC | |||
| 15VDC | ||||
| 350W Convection / 500W Forced Air | 18VDC | |||
| 24VDC | ||||
| 27VDC | ||||
| 36VDC | ||||
| 48VDC | ||||
| 350W Convection / 500W Forced Air | 48VDC | |||
| 12/15/18/24/27/36/48VDC / 5V sb. |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
• Input Range 100 to 240 VAC
• Frequency 50 to 60Hz
• Input Current ≤ 6A
• Inrush Current ≤ 80A/230VAC
• Hold Up Time ≥ 10ms
• Turn On Time ≤ 3s
• Short Circuit Protection Auto Recovery
• Over Current Protection Auto Recovery
• Over Voltage Protection Auto Recovery
• Over Temperature Protection Auto Recovery
• Operating Temperature -20 to 50°C
• Storage Temperature -20 to 85°C
• Operating Humidity 10% to 90 %
• Storage Humidity 5% to 95 %
• 5V Stand by 5Vsb: 5V@0.6A without fan,1A with fan 25CFM
• 12V Fan Supply 12V@0.5A for driving fan
Certified for whole series: CB IEC 60601-1, CE EMC(EN 60601-1-2), CB IEC 62368-1, CE EMC(EN 55032+EN 55035), FCC Part 15B
Complied with ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1
