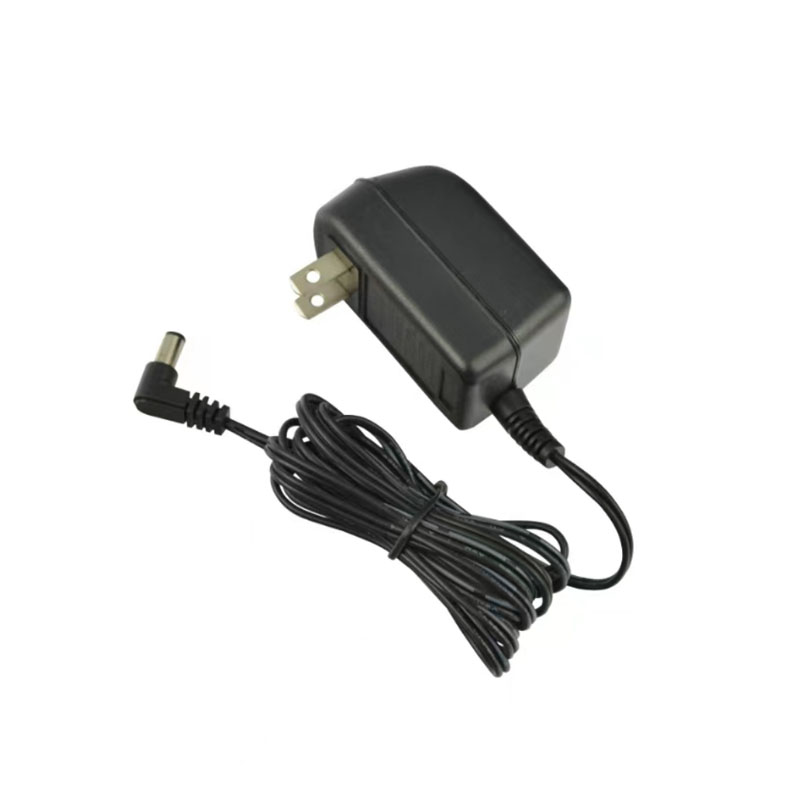

4.5VDC 150mA PSE Indoor Wallmount Linear Adapter
  • 4.5VDC 150mA PSE Indoor Wallmount Linear Adapter4.5VDC 150mA PSE Indoor Wallmount Linear Adapter

4.5VDC 150mA PSE Indoor Wallmount Linear Adapter

1.ELECTRICAL PERFORMANCE1-1.Primary rated voltage and frequency:100VAC 50/60Hz.1-2.ELECTRICAL CHARACTERISTICS1-3.Secondary rated voltage and currentTEST POINTFULL LOAD RATED VOLTAGERATED CURRENTVOLTAGE REGULATIONNO LOAD VOLTAGE5~64.5VDC±5%150mA7.2VDC±5%1-4.Primary exciting current(lo):45......

Send Inquiry

Product Description

1.ELECTRICAL PERFORMANCE

1-1.Primary rated voltage and frequency:100VAC 50/60Hz.

1-2.ELECTRICAL CHARACTERISTICS

1-3.Secondary rated voltage and current

TEST POINT

FULL  LOAD  RATED VOLTAGE

RATED CURRENT
VOLTAGE REGULATION
NO LOAD VOLTAGE
5~6
4.5VDC±5%
150mA

7.2VDC±5%

1-4.Primary exciting current(lo):45mA rms max,at input 100VAC 50/60Hz

Loading(IL):65mA rms max./Primary load current(IL):The maximum value is 65mA

1-5.D.C.Resistance:Primary: / Ω±15%,measured at25℃/初级直流电阻: / Ω±15%,环境温度25℃

1-6.Empty loss max: 1.5watts max,at input

100VAC 50/60Hz/Maximum empty loss: 1.5 watts,input100VAC 50/60Hz

1-7.Temperature rise: 95 ℃ max on primary coil by the resistance method,and  55 ℃ max on the surface of the case by the thermometer method at  25 ℃ ambient,rated load condition.

1-8.Insulation resistance:500VDC supplied,100M ohms minimum between winding & core.

1-9.HI-pot test:1750VAC 50Hz for 60seconds (leakage current 1mA) primary to secondary&core.

1200VAC 50Hz for 60seconds (leakage current 1mA) secondary to core.

1-10.Induce voltage:All secondary opened,primary should withstand 200V 360Hz for 60second without breakdown.

1-11.Life test:In an ambient temperature of 25℃ ,90-95% R.H.,applying a power source of 100VAC 50/60 Hz to primary, with full load150 mA for 24 hours contimuously,unit output normally  and meet the requirements of item 1-8、1-9.

1-12.Humidity test:In an ambient temperature of 25±2℃ and 90-95% R.H..for 48 hours after 10 minutes out of the oven,the unit should meet item 1-9 requirements,and insulation Resistance shall be 10M ohms minimum.

2.MECHANICAL CHARACTERISTICS

2-1.Drop test:Dropped freely from 3 feet height onto a concrete floor covered with 1/8

inch vinyl tile 3 times from 3 different surface,the unit should meet the item 1-9

2-2.Strain relief test:At normal position, 10 lbs to output cord for 50 secods each,there shall be no breakage displacement.

2-3.Bending test:The plug and S/R should withstand weight of 200 gram,swinging from left to right at an angle of 120 degree for 1000 cycles,and 40cycles per minute. The  cord shall be conductible.

3.SAFETY STANDARD

◇ Meet                     ◆ Approved

◇ UL/CUL     ◆PSE     ◇TUV/CE     ◇BSI/CE     ◇T-MARK     CQC

4.INSULATION SYSTEM

◇CLASS A(105℃)               ◆CLASS E(115℃)

◇CLASS B(130℃)               ◇CLASS F(155℃)

5.MECHANICAL REQUIRMENTS

5-1.Appearance:Damage and rusting are not permitted.

6.ENVIROMENTAL CONDITION

6-1.Operating temperature range:-10℃---+40℃

6-2.Storage temperature range:-20℃---+80℃

6-3.Operation humidity range:30---85% R.H

7..INSPECTION ON LINE

7-1.The test items for each produce

◆ Primary exciting current

◆ Core loss

◆ Output voltage

◆ Input current and power at rated load

◆ Foreign mass by shock

◆ Polarity of output plug

◆ Hi-pot test

◆ Apperance

7-2.The test item for part of products

◆ Hum operating at rated load

◆ D.C.Resistance

◆ Insulation test

8.NET WEIGHT

9.APPEARANCE DIMENSION







OUTPUT CORD: 2468#24AWG  1.83 M Straight-ended tuning fork

PLUG/DC:3.5±0.1mm*1.35±0.1mm*10±0.5mm

CENTER:Positive electrode

10.MATERIAL  LIST

ITEM PARTS NAME MATERIAL&SPEC Q’TY MANUFATURER
1 BOBBIN Nylon  CLASS  B THICK0.71mm MIN E I DUPONT DE NEMOURS&CO INC(E41938M)
2 CORE E-I LAMINATED SILICON BEST LEGEND HUI DINGS LTD
STEEL/E-I
3 PRI.WINDING 2UEW MAGNET WIRE CLASS  B PACIFIC ELECTRIC WIRE & CABLE CO., LTD
JUNG SHING WIRE CO., LTD
E201757/E174837
4 SEC.WINDING 2UEW MAGNET WIRE CLASS  B
5 SEC.OUTER INSULATION MYLAR TAPE 0.025mm JING JIANG PRESSURE SENSITIVE CO.,LID
E165111(N)
6 PRI.OUTER INSULATION MYLAR TAPE 0.025mm
7 RECTIFIER BOARD P.C.BOARD(94-V0) CLASS  B CHIH HSIEN ENTERPRISE CO.,
LTD.(E105119) OR EQUIVALENT.
8 DIODE SILICON RECTIFIERS PAN JIT INTERNATIONAL INC.
OR OTHER EQUIVALENT.
9 CAPACITOR ELECTROLYTI/ SHIANG CHEN ELECT.CO.,LTD.
470uF 16V OR OTHER EQUIVALENT.
10 ENCLOSURE 28# U black E I DUPONT DE NEMOURS&CO INC OR OTHER EQUIVALENT.
11 OUTPUT CORD 2468#24AWG black. XIN LONG ELECTRONIC CO.,LTD. E332522
E157717/E487181/E189674/E341894/E494205
12 NAMEPLATE PVC(UL/CSA)OR ALUMINUM YOUMG TONE PRINTING MFG MH27610
PVC(UL/CSA)
13 PROTECTION THERMAL CUTOFF TUV JOINT FORCE METAL RESEARCH & CO
115℃ 2A 250V TUV JING JIANG ZING CHENG ELECTROTICS CO.,LTD E142267/R2134811/E140847
NOTE Vannish/凡立水 VARNISH V-1630FS VIKING ELECTRONIC CO., LTD  E359418
