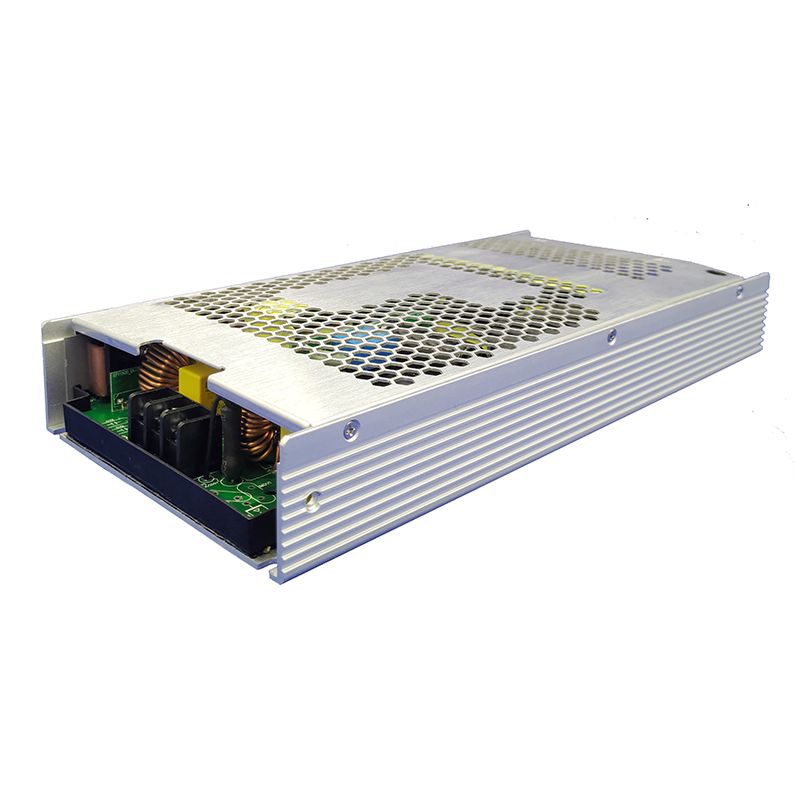

You are welcomed to come to Powereagle factory to buy the latest selling, low price, and high-quality 1500-1512W Enclosed AC DC Switching Power Supply. We look forward to cooperating with you.
You can rest assured to buy customized 1500-1512W Enclosed AC DC Switching Power Supply from Powereagle. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!
• Slim and Low Profile
• Protections:Short circuit / Over voltage / Over current / Over temperature (optional)
• Energy Efficiency ≥ 94%~95% depends on models
• MTBF > 50,000 hours
• Fanless and Conduction-cooled Design
• Built-in Active PFC Function
• Built-in Remote ON-OFF Control
• DC OK Active Signal
• LED Indicator
XX: Specified output voltage, i.e. 12 is 12VDC
YY: Differential segmentation
OUTPUT
| Wattage | Output | VAC Universal Input | Frequency | Mechanical Size |
|---|---|---|---|---|
| 1500W | 24VDC | 100~240 | 50~60Hz | 290L x 140W x 41H (mm) |
| 1512W | 48VDC |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
• Input Range 100 to 240VAC
• Frequency 50 to 60Hz
• Input Current ≤ 11A
• Inrush Current ≤ 60A/230VAC
• Hold Up Time ≥ 10ms
• Turn On Time ≤ 2s
• Short Circuit Protection Auto Recovery
• Over Circuit Protection Auto Recovery
• Over Voltage Protection Latch-off
• Over Temperature Protection Auto Recovery
• Operating Temperature -30 to 70°C
• Storage Temperature -40 to 85°C
• Operating Humidity 20% to 90 %
• Storage Humidity 10% to 95 %
• Mechanical Size: 290L x 140W x 41H (mm)
• Pin Assignment:
AC Input Terminal (TB1): DECAT25
|
Pin No. |
Assignment |
|
1 |
AC/L |
|
2 |
AC/N |
|
3 |
⏚ |
DC Output Terminal: EDAC Terminal
|
Pin No. |
Assignment |
|
TB2 |
+V |
|
TB3 |
-V |
• Weight: 2600g
• Complied with UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035)
