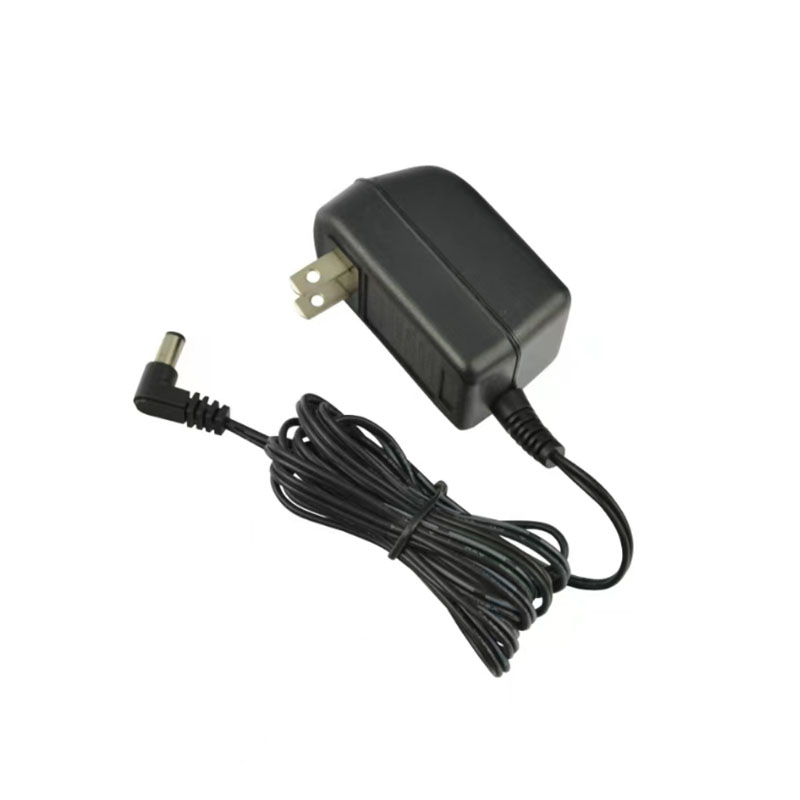

4.5VDC 150mA PSE Indoor Wallmount Linear Adapter

1.ELECTRICAL PERFORMANCE
You can rest assured to buy 4.5VDC 150mA PSE Indoor Wallmount Linear Adapter from our factory and Powereagle will offer you the best after-sale service and timely delivery.
1-1.Primary rated voltage and frequency：100VAC 50/60Hz.

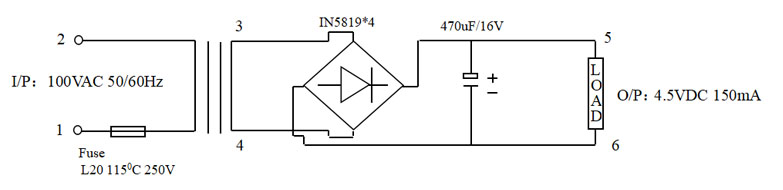

1-2.ELECTRICAL CHARACTERISTICS

1-3．Secondary rated voltage and current

1-4.Primary exciting current(lo)：45mA rms max,at input 100VAC 50/60Hz

Loading(IL)：65mA rms max./Primary load current(IL)：The maximum value is 65mA

1-5.D.C.Resistance：Primary： / Ω±15%,measured at25℃/初级直流电阻： / Ω±15%,环境温度25℃

1-6.Empty loss max： 1.5watts max,at input

100VAC 50/60Hz/Maximum empty loss： 1.5 watts,input100VAC 50/60Hz

1-7.Temperature rise： 95 ℃ max on primary coil by the resistance method,and  55 ℃ max on the surface of the case by the thermometer method at  25 ℃ ambient,rated load condition.

1-8.Insulation resistance：500VDC supplied,100M ohms minimum between winding & core.

1-9.HI-pot test：1750VAC 50Hz for 60seconds (leakage current 1mA) primary to secondary&core.

1200VAC 50Hz for 60seconds (leakage current 1mA) secondary to core.

1-10.Induce voltage：All secondary opened,primary should withstand 200V 360Hz for 60second without breakdown.

1-11.Life test：In an ambient temperature of 25℃ ,90-95% R.H.,applying a power source of 100VAC 50/60 Hz to primary, with full load150 mA for 24 hours contimuously,unit output normally  and meet the requirements of item 1-8、1-9.

1-12.Humidity test：In an ambient temperature of 25±2℃ and 90-95% R.H..for 48 hours after 10 minutes out of the oven,the unit should meet item 1-9 requirements,and insulation Resistance shall be 10M ohms minimum.

2.MECHANICAL CHARACTERISTICS

2-1．Drop test：Dropped freely from 3 feet height onto a concrete floor covered with 1/8

inch vinyl tile 3 times from 3 different surface,the unit should meet the item 1-9

2-2.Strain relief test：At normal position, 10 lbs to output cord for 50 secods each,there shall be no breakage displacement.

2-3.Bending test：The plug and S/R should withstand weight of 200 gram,swinging from left to right at an angle of 120 degree for 1000 cycles,and 40cycles per minute. The  cord shall be conductible.

3.SAFETY STANDARD

◇ Meet                     ◆ Approved

◇ UL/CUL     ◆PSE     ◇TUV/CE     ◇BSI/CE     ◇T-MARK     CQC

4.INSULATION SYSTEM

◇CLASS A（105℃）               ◆CLASS E（115℃）

◇CLASS B（130℃）               ◇CLASS F（155℃）

5.MECHANICAL REQUIRMENTS

5-1．Appearance：Damage and rusting are not permitted.

6.ENVIROMENTAL CONDITION

6-1.Operating temperature range：-10℃---+40℃

6-2.Storage temperature range：-20℃---+80℃

6-3.Operation humidity range：30---85% R.H

7..INSPECTION ON LINE

7-1．The test items for each produce

◆ Primary exciting current

◆ Core loss

◆ Output voltage

◆ Input current and power at rated load

◆ Foreign mass by shock

◆ Polarity of output plug

◆ Hi-pot test

◆ Apperance

7-2．The test item for part of products

◆ Hum operating at rated load

◆ D.C.Resistance

◆ Insulation test

8.NET WEIGHT

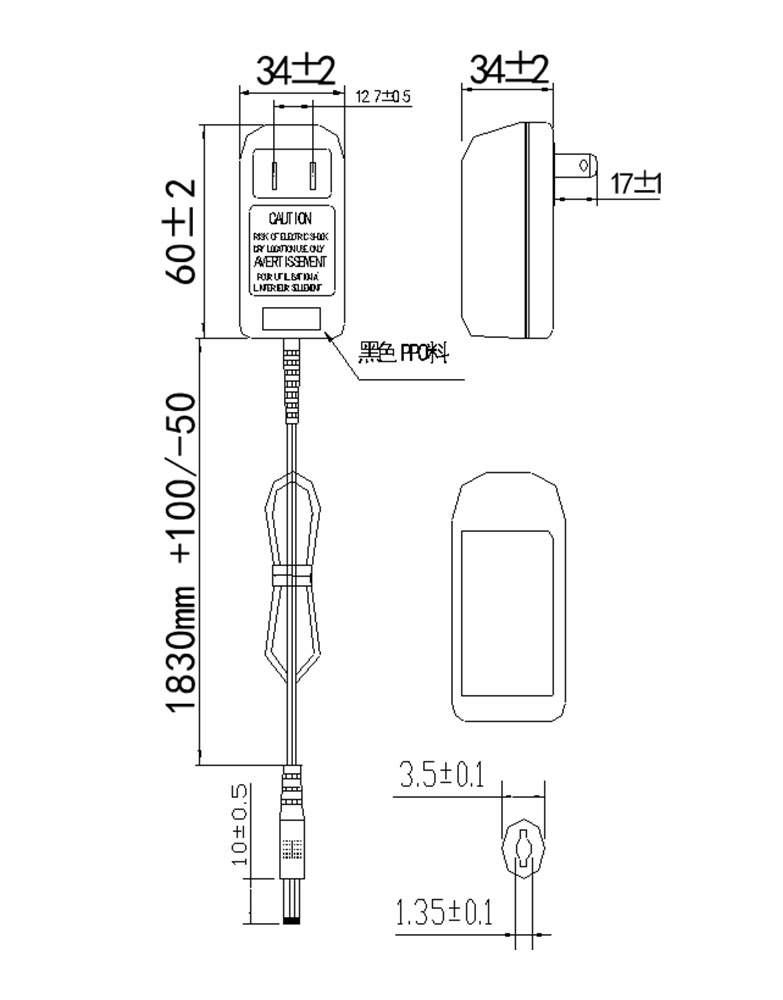

9.APPEARANCE DIMENSION

OUTPUT CORD： 2468#24AWG  1.83 M Straight-ended tuning fork

PLUG/DC：3.5±0.1mm*1.35±0.1mm*10±0.5mm

CENTER：Positive electrode

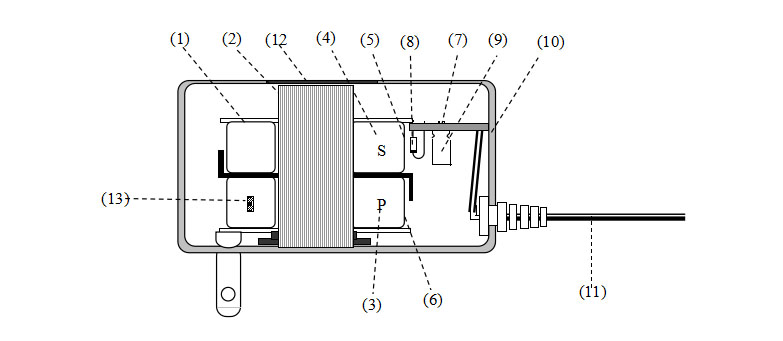

10.MATERIAL  LIST
