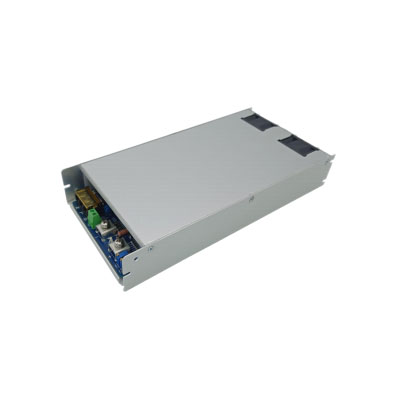

1000W (with active PFC) single group output
PE-1000 series
● With active PFC power factor correction function
● AC 115-230v wide voltage input
● 1U ultra thin (thickness 4cm)
● 1000W rated power, 1150W maximum power
● Constant pressure and current function
● Control function of ps-0n output voltage switch
● A variety of voltage specifications are available
| Model | PE-3000-12 | PE-3000-24 | PE-3000-36 | PE-1000-48 | PE-1000-54 | PE-1000-60 | PE-1000-72 | PE-1000-110 | PE-1000-150 | |
| Output parameter | DC output voltage | 12V | 24V | 36V | 48V | 54V | 60V | 72V | 110V | 150V |
| Rated output current | 66A | 42A | 28A | 21A | 18.5A | 17A | 13.8A | 9A | 6.6A | |
| Maximum output current | 70A | 46A | 30A | 23A | 20A | 18A | 15A | 10A | 7A | |
| Rated output power | 800W | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W | |
| Maximum output power | 840W | 1100W | 1100W | 1100W | 1080W | 1100W | 1100W | 1100W | 1100W | |
| conversion efficiency | 86% | 89% | 90.50% | 92% | 92% | 92.50% | 92.50% | 93% | 93% | |
| Ripple (full load) | 180mv | 200mv | 230mv | 250mv | 280mv | 280mv | 300mv | 330mv | 350mv | |
| Linear adjustment rate | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Load adjustment rate | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | |
| Voltage stabilization accuracy | ±3% | |||||||||
| Start up, rise time | 2s 100ms | |||||||||
| Holding time | 15ms | |||||||||
| Output wiring mode | M5 riveting terminal | |||||||||
| input parameter | input voltage | AC 110v-240v (wide voltage adaptive, no conversion required) | ||||||||
| AC input frequency | 47-63Hz | |||||||||
| Input wiring mode | 3pin hb-9500 terminal with protective cover Please connect the ground wire when using | |||||||||
| Input current (maximum) | Full load 1000W output, using 220VAC input, input current 5A Full load 1000W output, using 110VAC input, input current 10A | |||||||||

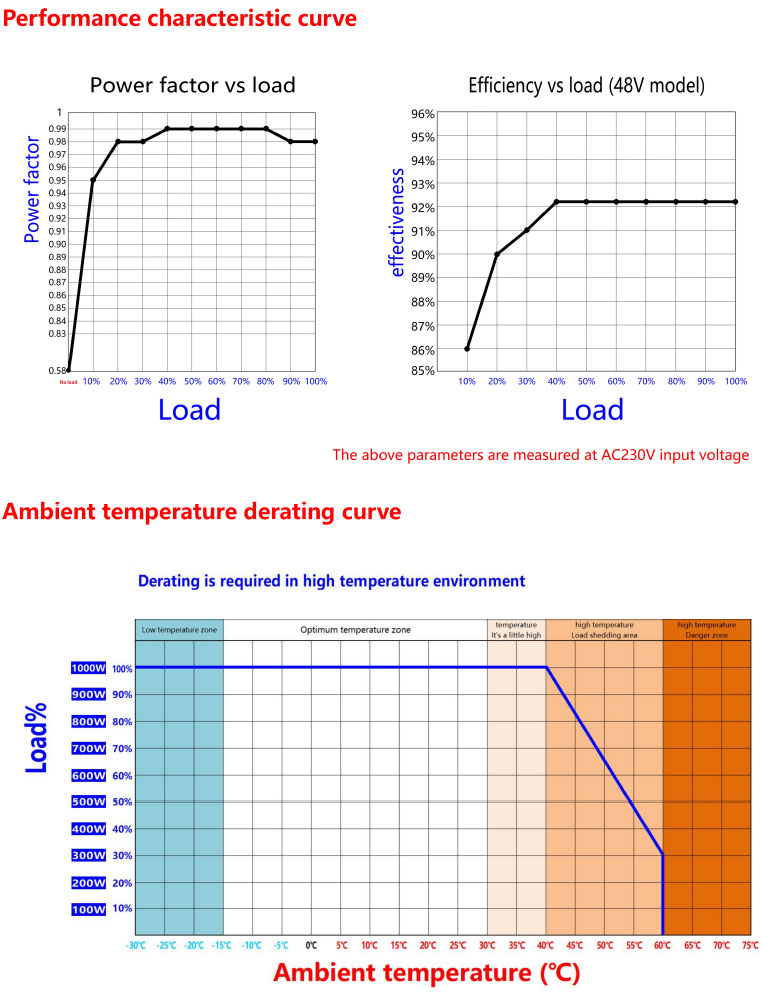

| power factor (PF value) | Ac110-240v input, when the power supply is 100% full load, the power factor pf value ≥0.98 (see the PF value curve in the figure below) | |||||||||
| Surge current | Cold start, 40A at 230V, 20A at 110V | |||||||||

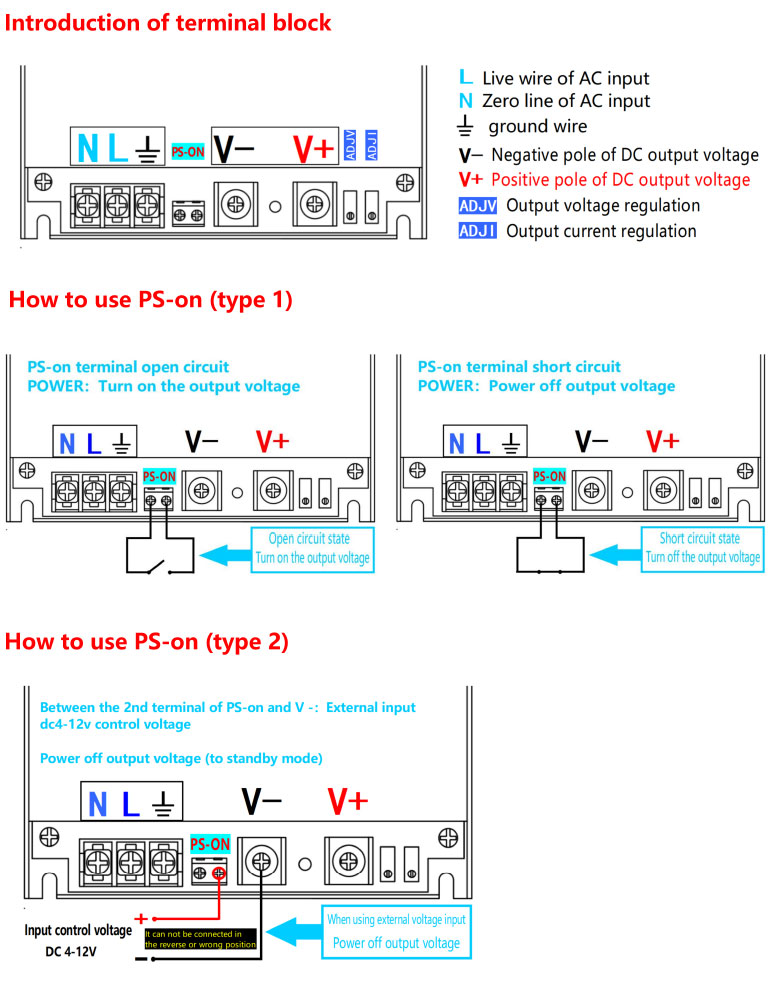

| function | PS-ON | PS-on terminal short circuit: no output voltage of power supply PS-on terminal open circuit: The power supply has an output voltage Refer to the picture below explain: ps-on can control the output voltage of the power supply on and off. When the output voltage is turned off the power supply is in a very low power (less than 10W) standly state. Only the auxiliary power supply is working inside, and the cooling fan will work normally. The power supply of ac1 10-240v input terminal is not disconnected. | ||||||||
| Output voltage regulation | Potentiometer V is used to adjust the voltage | |||||||||
| Output current regulation | The output current is adjustable in the whole process, and the ADJI potentiometer is adjusted manually. When the load reaches the current setting value, the power supply keeps constant current output | |||||||||
| Protection function | Output high voltage protection | When the output voltage increases to 1 15% of the rated voltage, the power will turn off the output and will not recover automatically. It can only be restored by re energizing | ||||||||
| Output short circuit protection | When the output terminal is short circuited, the power supply has no voltage output, and the power supply recovers the output voltage after the short circuit is removed | |||||||||
| over load protection | The overload protection mode is constant current limiting mode, the locked output current value does not rise, and the output voltage decreases with the increase of load | |||||||||
| Overheating protection | When the temperature of the heat sink of PWM transistor reaches 85。C, the output voltage will be turned off, and when the temperature drops to 75。C, it will automatically recover | |||||||||
| Security and EMC standard | EMC standard | Does not conform to EMC standards | ||||||||
| Insulation impedance | I/P-O/P,I/P-FG,0/P-FG:100M Ohms /500VDC /25°C/70%RH | |||||||||
| Leakage current | ≤1.5MA/AC220V | |||||||||
| Withstand voltage | Input and output: 3000VAC Input and ground: 1500vac Between output end and housing: 500VAC | |||||||||
| vibration behavior | 10~ 500Hz, 2G 10 min 1/ cycle, 60 min for each axis of XYZ | |||||||||
| other | Heat dissipation mode | Fan heat dissipation (temperature control automatic speed regulating fan, double fan,internal air blowing mode) | ||||||||
| Noise value of cooling fan | In the indoor environment of about 20-25 dB, when two fans rotate at full speed, about 37 DB is measured at 50cm away from the power supply | |||||||||
| working temperature | -30-40°C, the power should be reduced when over temperature. Refer to the temperature load reduction curve below | |||||||||
| weight | Light and thin type 1.4kg (excluding package and accessories) | |||||||||
| size | Length 268mm * width 130mm * height 40mm | |||||||||
| Installation hole position | The long spacing is 260mm, and the width spacing is 120mm. The U-shaped groove and screw hole at the four corners of the shell are used to install and fix | |||||||||
| Tips |
1. Pay attention to ventilation and heat dissipation when using. Do not install the power supply in a fully sealed power supply 2.There is high-voltage electricity in the casing. Non professional personnel are not allowed to dismantle the machine at will and can not operate with electricity to prevent electric shock |
|||||||||

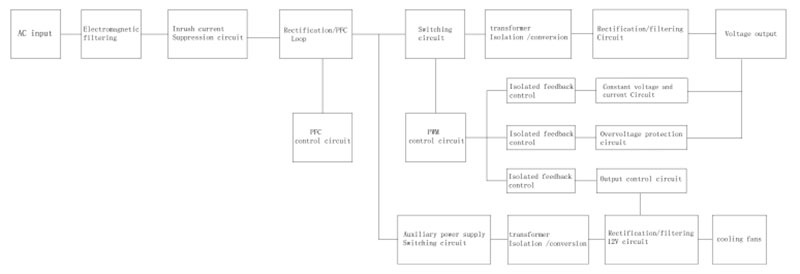

block diagram
