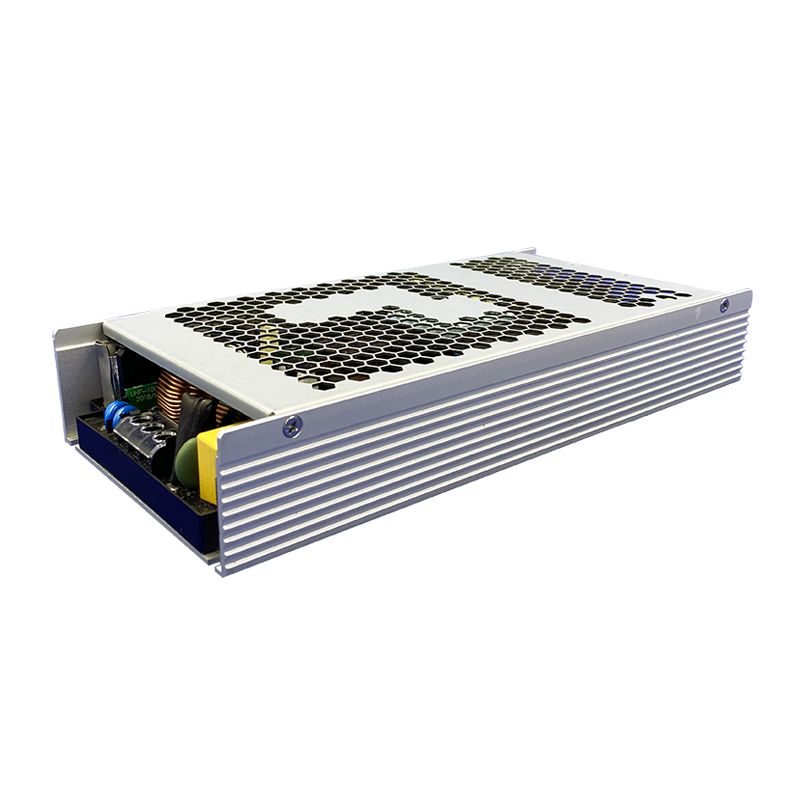

High quality 960-1008W Enclosed AC DC Switching Power Supply is offered by China manufacturer Powereagle. Buy 960-1008W Enclosed AC DC Switching Power Supply is of high quality directly with low price.
OUTPUT
| Wattage | Output | VAC Universal Input | Frequency | Mechanical Size |
|---|---|---|---|---|
| 960W | 12VDC | 100~240 | 50~60Hz | 240L x 115W x 41H (mm) |
| 1008W | 24VDC | |||
| 36VDC | ||||
| 48VDC |
PRODUCT SPECIFICATION
ENVIRONMENT
● Operating Temperature-30 to 70°C
● Storage Temperature-40 to 85°C
● Operating Humidity20% to 90%
● Storage Humidity10% to 95%
INPUT
● Input Range100 to 240 VAC
● Frequency50 to 60Hz
● Input Current≤11A
● Inrush Current≤40A/230VAC
● Hold Up Time≥8.3ms
● Turn On Time≤1s
SAFETY
● Complied with UL 62368-1, CAN/CSA C22.2 No.62368-1, TUV EN 62368-1, CB IEC 623681, FCC Part 15B, CE EMC(EN 55032+EN 55035)
Hot Tags: 960-1008W Enclosed AC DC Switching Power Supply, China, Manufacturers, Suppliers, Factory, CE, Quality, Customized, In Stock, Bulk, Free Sample
● Wattage:960W
● Output:12VDC
● 100~240VACUniversal Input
● Frequency:50~60Hz

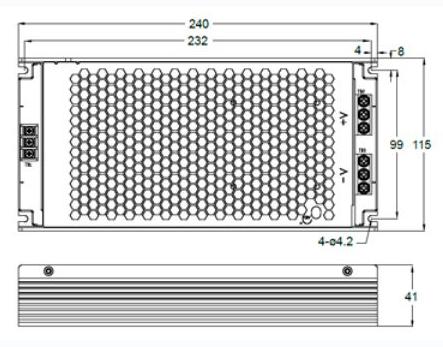

● Mechanical Size:240L x 115W x 41H (mm)
● Weight:1800g
