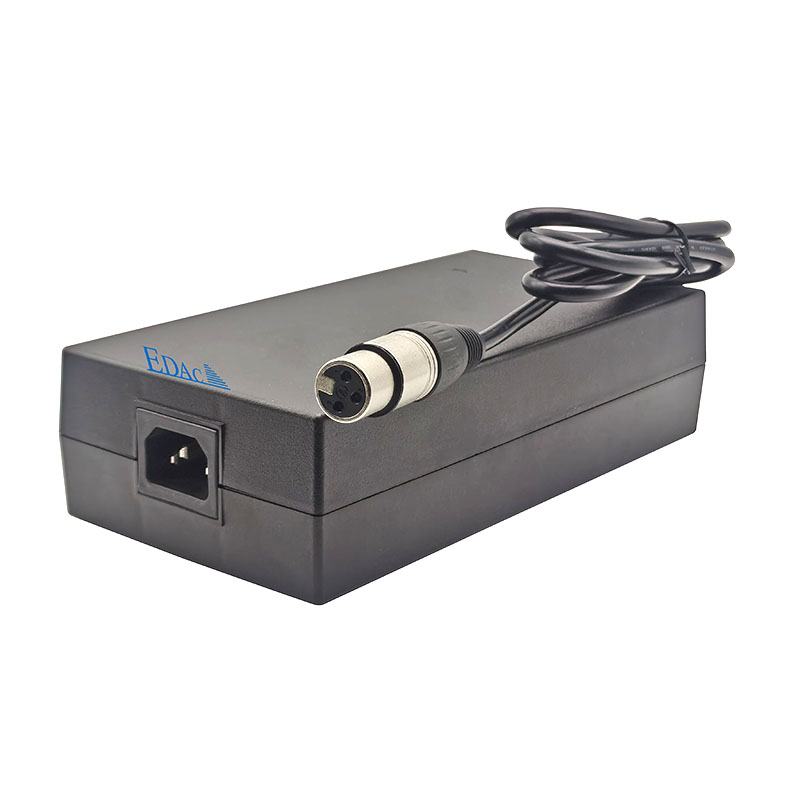

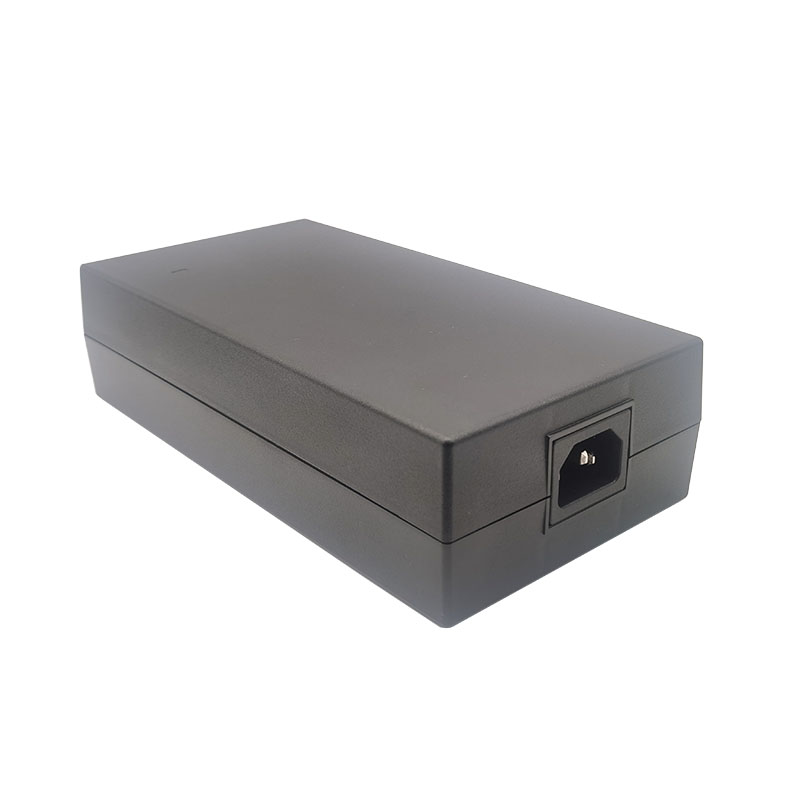

230-310W Medical AC DC Desktop Adaptor

Factory Directly Supply Quality 230-310W Medical AC DC Desktop Adaptor made in China. Powereagle is 230-310W Medical AC DC Desktop Adaptor manufacturer and supplier in China.

Features
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LED Indicator
• Active PFC Function
• Protections: Short circuit / Over voltage / Over current / Over temperature
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.21 W
• MTBF > 50,000 hours
EM1300 X Y - vv PP
X: AC inlet: 1. C14 2. C8 3. C6 6. C18
Y: Output range
vv: Specified output voltage, i.e. 12 is 12VDC
PP: DC plug type, i.e. Code 01 for 5.5x2.1mm or other options (refer to the appendix page)
General Specification
OUTPUT

NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
INPUT
• Input Range100 to 240 VAC
• Frequency50 to 60Hz
• Input Current5A to 2.5A
• Inrush Current≤ 140A/230VAC
• Hold Up Time≥ 8.3ms
• Turn On Time≤ 3s
PROTECTION
• Short Circuit ProtectionAuto Recovery
•Over Voltage ProtectionLatch-off
• Over Current ProtectionAuto Recover
• Over Temperature ProtectionLatch-off
ENVIRONMENT
• Operating Temperature-20 to 40°C
• Storage Temperature-20 to 85°C
• Operating Humidity10% to 90%
• Storage Humidity5% to 95%

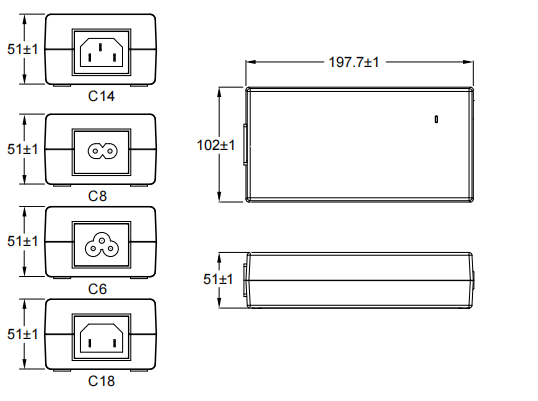

MECHANICAL

• Case Size: 197.7L x 102W x 51H (mm)
• AC Inlet: C14, C8, C6, C18
• Weight: 1350g
SAFETY
Certified for whole series: ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2) FCC Part 15B, CE EMC(EN 55032+EN 55035)
