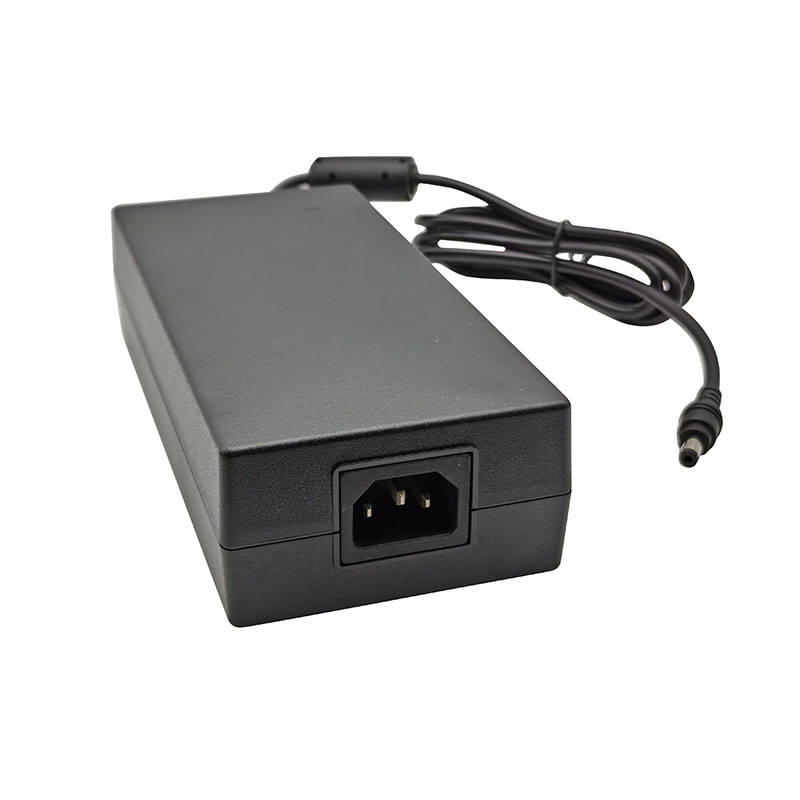

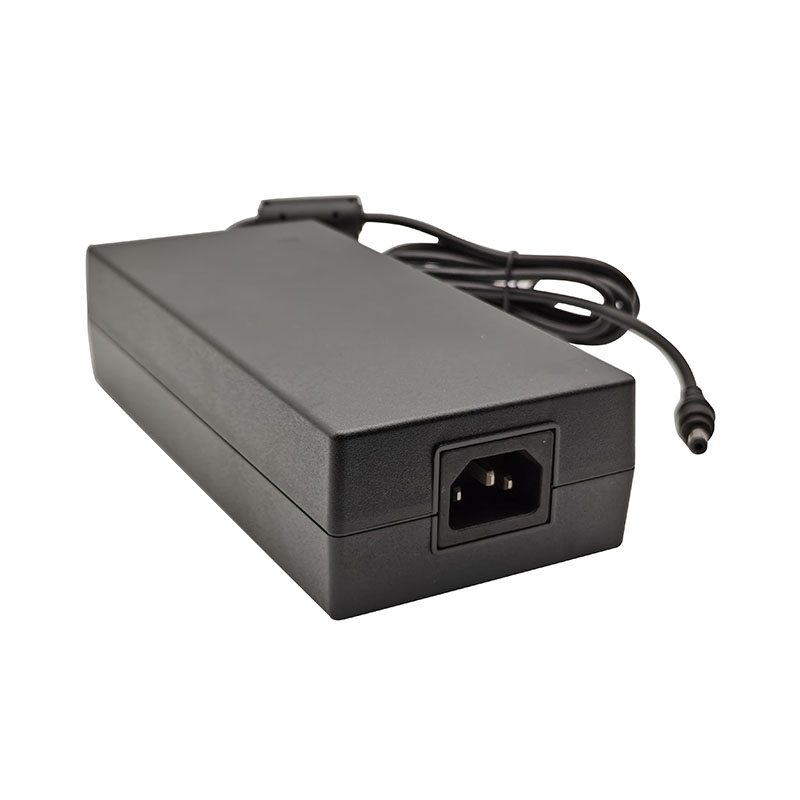

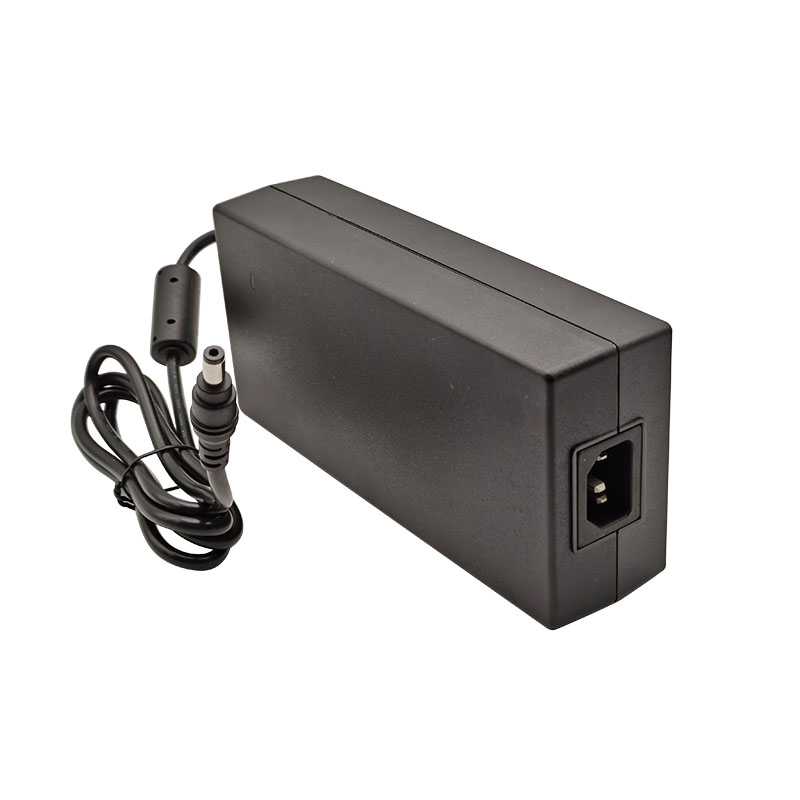

Powereagle is a professional 160-250W Medical AC DC Desktop Adaptor manufacturers and suppliers in China, you can rest assured to wholesale and customized 160-250W Medical AC DC Desktop Adaptor from our factory and we will offer you the best after-sale service and timely delivery.
Features
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LED Indicator
• Active PFC Function
• Protections: Short circuit / Over voltage / Over current / Over temperature
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.21W
• MTBF > 50,000 hours
EM1250 X Y - vv PP
X: AC inlet: 1. C14 2. C8 3. C6 6. C18
Y: Output range
vv: Specified output voltage, i.e. 12 is 12VDC
PP: DC plug type, i.e. Code 01 for 5.5x2.1mm or other options (refer to the appendix page)
General Specification
OUTPUT
| Wattage | Output | VAC Universal Input | Frequency | AC Inlet | Case Size |
|---|---|---|---|---|---|
| 160W | 12~18VDC | 100~240 | 50~60Hz | C14, C8, C6, C18 | 182L x 84.5W x 46H (mm) |
| 180W | 12~18VDC | ||||
| 180W | 19~28VDC | ||||
| 200W | 12~18VDC | ||||
| 200W | 19~28VDC | ||||
| 200W | 32~42VDC | ||||
| 200W | 44~56VDC | ||||
| 220W | 12~18VDC | ||||
| 220W | 44~56VDC | ||||
| 230W | 19~28VDC | ||||
| 230W | 32~42VDC | ||||
| 230W | 44~56VDC | ||||
| 250W | 19~28VDC | ||||
| 250W | 32~42VDC | ||||
| 250W | 44~56VDC |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
INPUT
• Input Range 100 to 240 VAC
• Frequency 50 to 60Hz
• Input Current 3.5A to 2.5A
• Inrush Current ≤ 140A/230VAC
• Hold Up Time ≥ 8.3ms
• Turn On Time ≤ 3s
PROTECTION
• Short Circuit Protection Auto Recovery
• Over Voltage Protection Latch-off
• Over Current Protection Auto Recovery
• Over Temperature Protection Latch-off
ENVIRONMENT
• Operating Temperature -20 to 40°C
• Storage Temperature -20 to 85°C
• Operating Humidity 10% to 90%
• Storage Humidity 5% to 95%

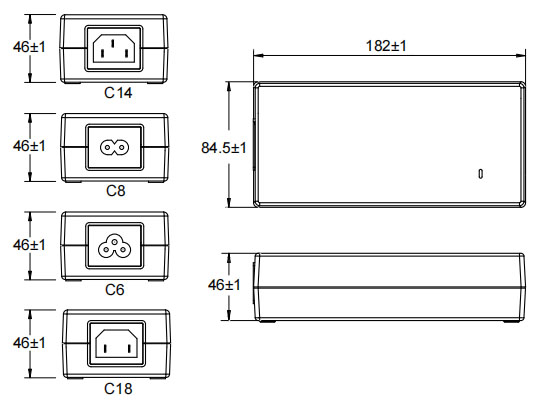

MECHANICAL
SAFETY
• Certified for whole series: ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2) TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B
• Certified for assigned models: NRCAN
